895-057-520-407

Edgeboard Connectors Overview

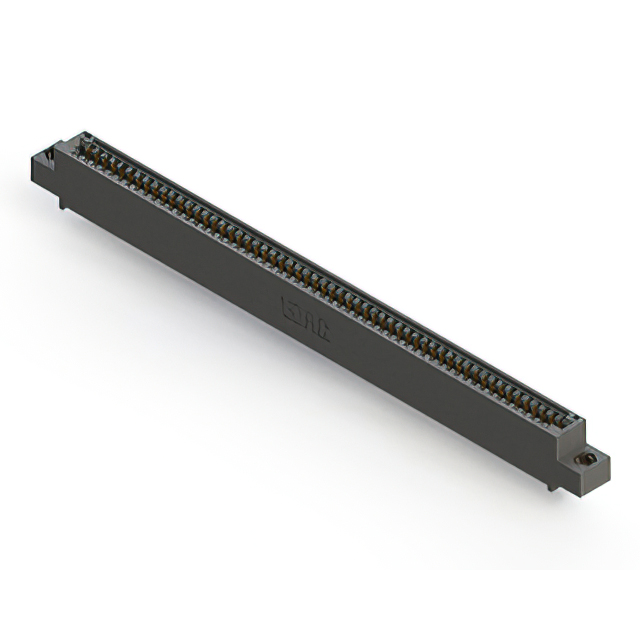

The EDAC Inc. 895-057-520-407 is a standard card edge connector from the 895 series, designed for single-row applications. It features 57 positions with a 0.100-inch (2.54mm) pitch and gold-plated contacts. The receptacle utilizes copper alloy terminals and a black polyphenylene sulfide (PPS) insulator. Rated for 3A current, it supports board thicknesses around 1.57mm and operates within -40°C to +125°C. This component is RoHS compliant and suitable for vertical panel mounting.

Edgeboard Connectors Feature Summary

• Single-row female configuration with gold-plated copper alloy contacts
• Polyphenylene sulfide (PPS) housing for thermal stability
• Vertical panel mount installation style

Edgeboard Connectors Applications

• Standard card edge interconnections
• Panel-mounted electronic assemblies
• Industrial control systems requiring robust connectivity

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 895 Series Ordering Guide to ensure correct contact plating, insulation material, and termination type. Confirm that the required board thickness falls within the connector's mechanical tolerance range before procurement. Cross-reference the MSL rating and environmental certifications such as RoHS and REACH status with project specifications to ensure compliance.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 57 positions is required. Ensure the mating card thickness aligns with the connector's design specifications. Verify that the operating temperature range meets the environmental conditions of the target application. Consider the vertical panel mount requirement during mechanical layout planning.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and row configurations. The 895-057-520-407 specifically addresses high-density single-row needs with durable materials. It complements other variants in the lineup by providing a standardized solution for reliable signal transmission in constrained spaces.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 895 Series Ordering Guide for direct substitutes with differing pin counts or row configurations. Verify compatibility regarding board thickness and mounting orientation. Ensure any alternative maintains the same electrical ratings and environmental compliance standards.
