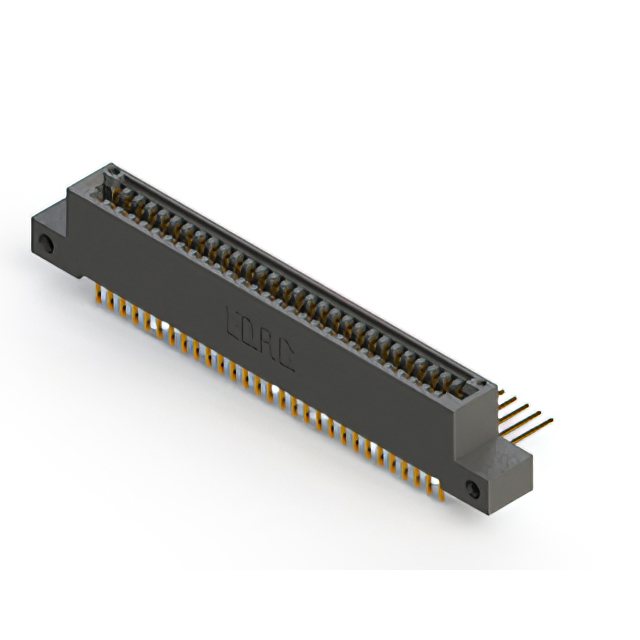

895-058-559-212 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 58POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 895-058-559-212
- Description：CONN EDGE DUAL FMALE 58POS 0.100
- Series：895
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：29
- Number of Positions：58
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 895-058-559-212
Edgeboard Connectors Overview
The EDAC Inc. 895-058-559-212 is a dual-edge female card edge connector featuring 58 positions with a 0.100-inch (2.54mm) pitch. Designed for through-hole mounting, it utilizes gold-plated contacts and black polyphenylene sulfide insulation. The component supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 125°C.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for reliable signal transmission
- Gold-plated terminal surfaces ensure corrosion resistance
- High-temperature PPS insulation material for thermal stability
Edgeboard Connectors Applications
- Industrial control systems
- Telecommunications equipment
- Consumer electronics assemblies
Edgeboard Connectors Procurement Notes
Verify the specific part number against official EDAC documentation to confirm current availability and manufacturing status. Ensure that ordering suffixes match the required mechanical and electrical specifications precisely. Cross-reference datasheets for updated environmental compliance information prior to final procurement decisions.
Edgeboard Connectors Selection Notes
Select this connector when a dual-edge interface with a standard 0.100-inch pitch is required. Confirm that the target PCB thickness falls within the specified operational range. Evaluate the high-temperature rating and gold plating requirements against the application's environmental conditions and signal integrity needs.
Edgeboard Connectors Part Context
This component belongs to the EDAC 895 series of edgeboard connectors. The series provides various position counts and termination options for standard card edge applications. It represents a standardized solution for connecting printed circuit boards in modular electronic systems requiring robust mechanical retention.
Edgeboard Connectors Replacement Considerations
Consult official EDAC substitution guides for verified alternative part numbers. Generic equivalents may not match the precise flange dimensions or contact geometry required for proper fitment.
