Edgeboard Connectors Overview

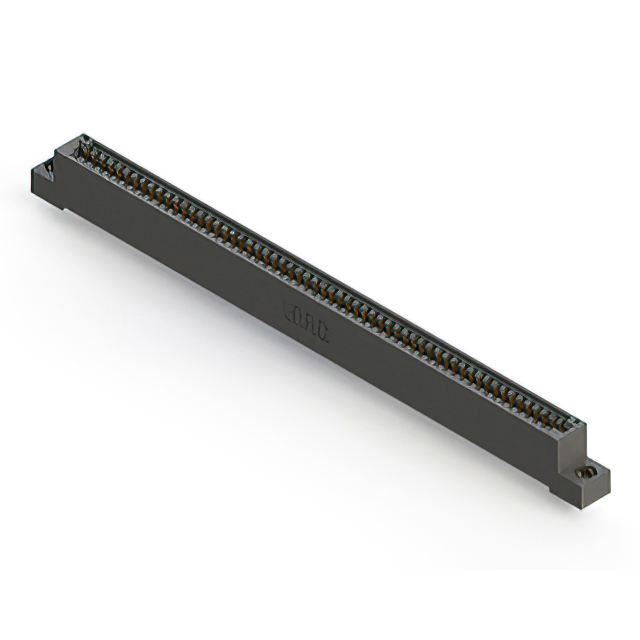

The EDAC Inc. part number 895-059-521-108 is a standard card edge connector receptacle from the 895 series. It features 59 positions with a 0.100-inch (2.54 mm) pitch and is designed for single-edge, non-specified cards. The connector utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) housing. It supports panel mount installation in a vertical orientation with solder pin termination. The device operates within a temperature range of -40°C to +125°C and has a current rating of 3 A.

Edgeboard Connectors Feature Summary

• Single-row receptacle design for non-specified single-edge circuit boards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Polyphenylene sulfide (PPS) insulation provides thermal stability
• Vertical panel mount configuration with solder pin termination

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Telecommunications equipment board connections
• Automotive electronics modules
• Test and measurement instrumentation interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm contact plating thickness and material specifications. Ensure that the ordering information matches the required card edge type and mounting style. Cross-reference the manufacturer's latest datasheet to confirm compliance with RoHS and REACH regulations before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 59-position connection is required for vertical panel mounting. The 2.54 mm pitch accommodates standard board layouts. Verify that the target PCB thickness falls within the specified operational limits. Consider the PPS housing material for applications requiring resistance to high temperatures up to 125°C.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 895 series, which offers various position counts and configurations. The 895 series is characterized by its robust construction and suitability for demanding environments. This specific model provides a high-contact count solution for space-constrained applications requiring reliable vertical connectivity.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 895 Series Ordering Guide for direct substitutes with different position counts or termination styles. No alternative part numbers are confirmed as direct replacements without verifying mechanical and electrical compatibility.
