895-060-523-202

Edgeboard Connectors Overview

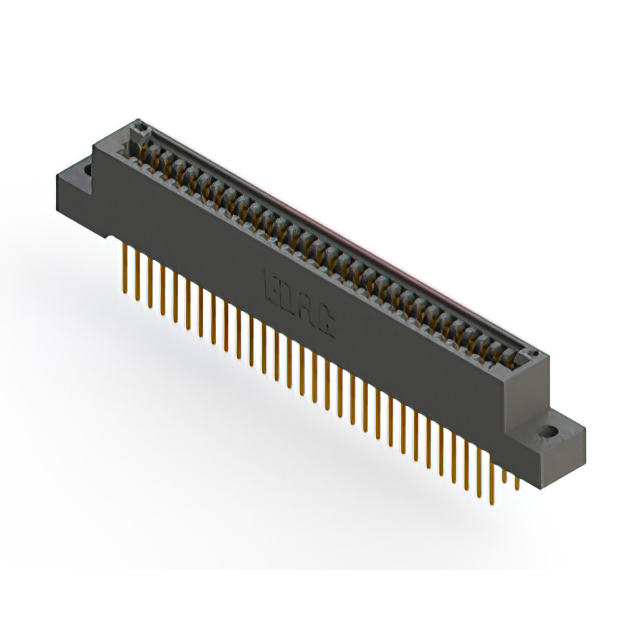

The EDAC Inc. part number 895-060-523-202 is a standard card edge connector designed for single-sided printed circuit board applications. It features a 60-position configuration with a .100 inch (2.54 mm) contact pitch and a .200 inch (5.08 mm) row spacing. The connector utilizes a dual female contact interface to mate with gold-plated edges on the PCB. Constructed with a high-profile insulator body, it accommodates nominal PCB thicknesses of .062 inches (1.57 mm). This receptacle type is engineered for reliable signal transmission in electronic assemblies requiring robust mechanical retention.

Edgeboard Connectors Feature Summary

• Dual female contact interface for secure mating with gold-plated card edges
• High-profile insulator body construction for enhanced mechanical stability
• Standardized .100 inch pitch with .200 inch row spacing for compatibility

Edgeboard Connectors Applications

• Single-sided printed circuit board interconnections
• Industrial control system module mounting
• Electronic equipment backplane interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count, termination style, and plating specifications. Ensure the target application supports the required .062 inch board thickness and that mating connectors are compatible with the dual female contact design. Cross-reference the component marking with official EDAC documentation to authenticate the source and prevent counterfeit substitution.

Edgeboard Connectors Selection Notes

Select this component when a 60-position single-row connection is required for boards with .062 inch thickness. Confirm that the assembly environment does not exceed the thermal limits defined in the official specification sheet. Evaluate whether the dual female contact geometry aligns with the mating card edge profile. Consider panel mount requirements if fixed positioning is necessary for the final product structure.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series provides various position counts and termination options for general-purpose electronic interconnects. The 895 series is characterized by its standardized pitch dimensions and durable polymer housing materials, serving as a foundational solution for modular electronic hardware designs across multiple industries.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 60-position count, .100 inch pitch, and dual female contact configuration. Verify that alternative parts support the same .062 inch board thickness and maintain identical row spacing dimensions. Check for equivalent termination methods and housing material properties to ensure mechanical and electrical compatibility.
