895-069-524-102

Edgeboard Connectors Overview

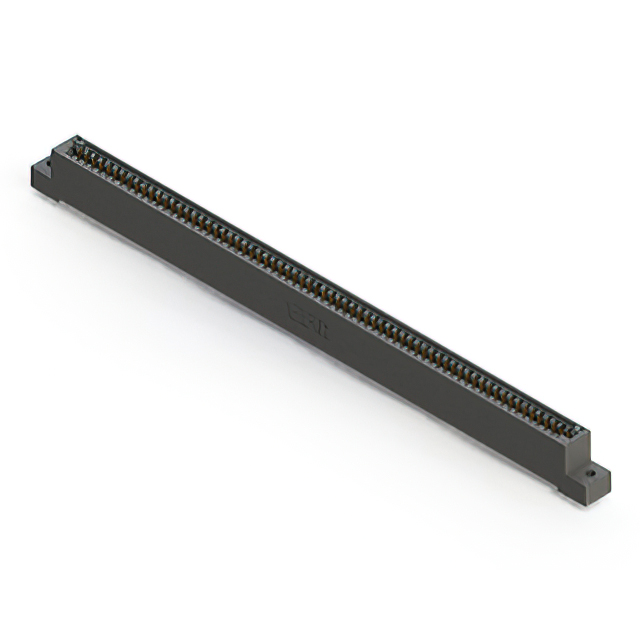

The EDAC Inc. 895-069-524-102 is a standard card edge connector receptacle designed for vertical panel mounting applications. It features a single row of 69 female contacts with a 0.100-inch (2.54mm) pitch and a 0.200-inch (5.08mm) row spacing. The unit accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with a high-profile insulator body made from Polyphenylene Sulfide (PPS), the connector utilizes copper alloy contacts finished with gold plating. It supports a current rating of 3 A and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount receptacle configuration for secure board insertion
• High-profile PPS insulator body providing structural stability
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Single row design accommodating standard 0.062 inch PCB thickness

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Medical device internal circuitry connections
• Energy management system interface modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC 895 Series Ordering Guide to ensure correct contact termination style and flange configuration. Confirm that the target application requires a single-row receptacle rather than a dual-row variant. Check for any recent Product Change Notifications (PCN) regarding material or manufacturing updates. Ensure compatibility with the specified 0.062 inch board thickness before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a vertical, single-row connection is required for 69-position interfaces. The 0.100 inch pitch is suitable for general-purpose signal routing where higher density is not critical. Consider the 3 A current rating for power distribution needs within the specified thermal limits. Evaluate the high-profile body height if space constraints exist on the mounting panel.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and row configurations to support diverse electronic assembly requirements. The 895 series is characterized by its durable construction and standardized dimensions, facilitating integration into broader connector ecosystems provided by EDAC Inc. for industrial and commercial electronics.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other EDAC series such as 845 or 837 only if mechanical footprint and electrical specifications match exactly.
