895-071-540-607

Edgeboard Connectors Overview

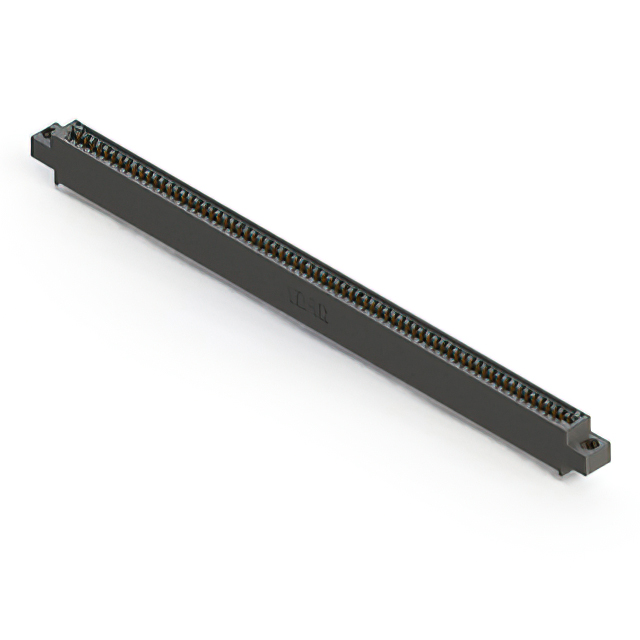

The EDAC Inc. part number 895-071-540-607 is a standard card edge connector receptacle designed for panel mount installation. It features a dual row configuration with 71 positions and a contact spacing of 0.100 inches (2.54mm). The connector utilizes gold-plated contacts and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The insulator body is constructed from high-profile material, ensuring robust mechanical stability in demanding environments.

Edgeboard Connectors Feature Summary

• Accepts .062" (1.57mm) nominal thickness P.C. board
• High profile insulator body construction

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology applications
• Harsh environment industrial systems

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer datasheet to confirm current RoHS compliance status and REACH restrictions before finalizing procurement. Ensure that the ordering suffix matches the required contact termination and flange characteristics exactly as specified in the official EDAC documentation to avoid functional mismatches.

Edgeboard Connectors Selection Notes

Select this component when a 71-position single-sided female connector is required for a 0.062-inch thick PCB. Confirm that the panel mount style and 0.100-inch pitch align with the system's mechanical constraints and mating card specifications.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series provides reliable interconnect solutions for various industries, including medical and agricultural technology sectors, where durability and precise alignment are critical for system performance.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 895 Series Ordering Guide to identify compatible substitutes. Verify that any alternative part maintains identical pin count, pitch, and board thickness acceptance criteria.
