895-072-525-103

$137.96

Description：CONN EDGE SINGLE FML 72POS 0.100
Series：895
Mfr：EDAC Inc.
Package：Bulk

SKU:a639dc7b42e5 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

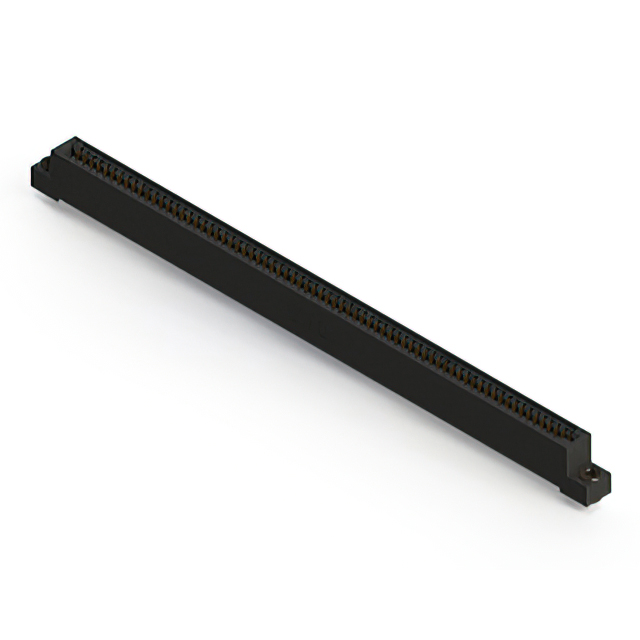

895-072-525-103 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 72POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 895-072-525-103

Description：CONN EDGE SINGLE FML 72POS 0.100
Series：895
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：72
Number of Positions：72
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 895-072-525-103

895-072-525-103

Edgeboard Connectors Overview

The EDAC Inc. 895-072-525-103 is a standard card edge connector from the 895 High Temp Series, designed for reliable signal transmission in demanding environments. It features a single row of 72 female contacts with a 0.100-inch (2.54mm) pitch. The connector utilizes gold-plated copper alloy terminals and a black polyphenylene sulfide (PPS) insulator. It supports PCB thicknesses ranging from 0.054 to 0.070 inches (1.37mm to 1.78mm) and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

High-temperature resistant construction using PPS insulation material
Gold-plated copper alloy cantilever contacts for durable connection
Single-row receptacle design with vertical panel mount configuration

Edgeboard Connectors Applications

Medical interconnect solutions
Agricultural technology equipment
Industrial control systems

Edgeboard Connectors Procurement Notes

Verify RoHS compliance status and REACH restrictions before integration. Confirm that the specific ordering suffix matches the required contact type and plating specifications. Ensure the supplier provides valid traceability documentation for the copper alloy terminals and PPS housing material to meet quality standards.

Edgeboard Connectors Selection Notes

Select this component when a high-density single-row interface is required for vertical mounting. The 72-position count suits applications needing extensive signal routing in limited space. Consider the 0.100-inch pitch for compatibility with standard PCB layouts and verify that the operating temperature range meets the environmental requirements of the target application.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 Series, which specializes in high-temperature card edge connectors. The series offers various position counts and configurations to support diverse industrial and medical needs. The 895 line is characterized by robust materials and precise manufacturing tolerances for consistent performance.
