895-090-524-803

Edgeboard Connectors Overview

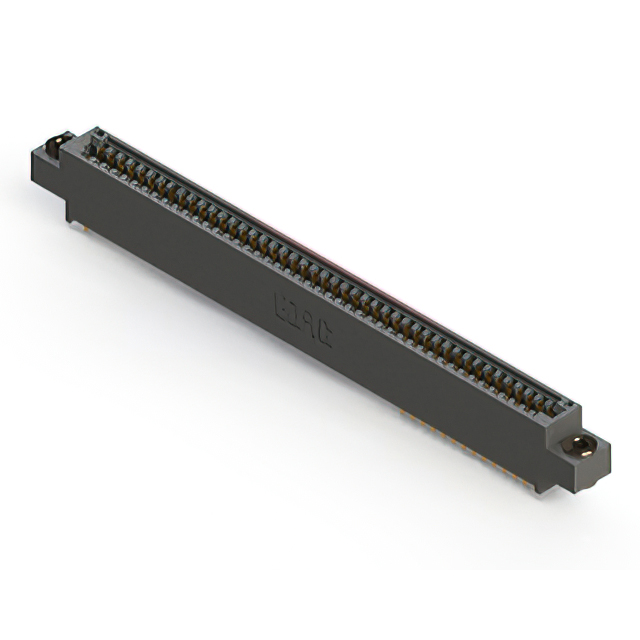

The EDAC Inc. 895-090-524-803 is a dual-edge female card edge connector designed for through-hole mounting. It features 90 positions with a 0.100-inch (2.54mm) pitch across two rows. The contacts are gold-plated copper alloy, and the housing is black polyphenylene sulfide (PPS). This component supports board thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for non-specified card applications
• Gold-plated copper alloy contacts for reliable signal transmission
• Polyphenylene sulfide (PPS) insulation material for thermal stability

Edgeboard Connectors Applications

• High-density electronic interconnects
• Industrial control systems
• Telecommunications equipment

Edgeboard Connectors Procurement Notes

Verify the specific part number against manufacturer datasheets to confirm pin count and pitch compatibility. Ensure that the target PCB card thickness falls within the specified 0.054 to 0.070 inch range. Confirm RoHS compliance status if required by project specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a high-pin-count, dual-sided interface is required for rigid boards. The 0.100-inch pitch accommodates standard trace widths. Consider the through-hole termination method for robust mechanical attachment. Verify that the operating temperature range meets the environmental demands of the intended application scenario.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and termination styles. The 895-090 variant specifically addresses needs for higher density connections in compact form factors while maintaining industrial-grade durability and electrical performance standards.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC ordering guide for direct substitutes within the 895 series. Verify that alternative parts match the 90-position count and 0.100-inch pitch exactly. Ensure any replacement maintains the same dual-edge female configuration and PPS housing material for physical compatibility.
