895-098-525-207

Edgeboard Connectors Overview

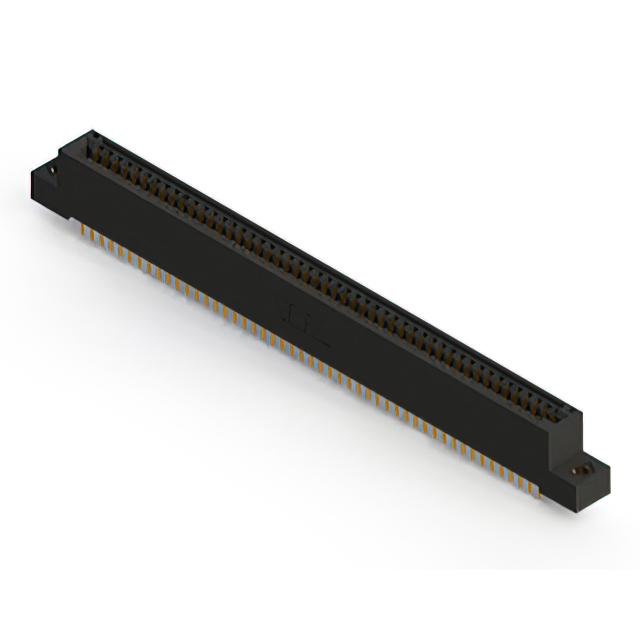

The EDAC Inc. 895-098-525-207 is a dual-edge female card edge connector from the 895 series, designed for through-hole mounting. It features 98 positions with a 0.100-inch (2.54mm) pitch across two rows. The contacts are made of copper alloy with gold plating and utilize a cantilever design. The insulator is constructed from black Polyphenylene Sulfide (PPS). It supports board thicknesses ranging from 0.054 to 0.070 inches.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with cantilever contact design
• Gold-plated copper alloy contacts for reliable signal transmission
• Polyphenylene Sulfide (PPS) insulator material for thermal stability

Edgeboard Connectors Applications

• High-density circuit board interconnections
• Industrial control system backplanes
• Telecommunications equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffix codes to ensure correct pin count, orientation, and termination style match the design requirements. Confirm that the supplier provides original manufacturer documentation and RoHS compliance certificates. Check for any recent product change notifications or obsolescence notices before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count dual-edge interface is required with specific board thickness constraints. Ensure the PCB design accommodates the 0.100-inch pitch and through-hole soldering process. Verify that the operating temperature range meets the environmental conditions of the target application.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 895 series, which utilizes Polyphenylene Sulfide for enhanced performance compared to other materials in similar form factors. The series offers various position counts and configurations to support diverse electronic assembly needs within standard industrial specifications.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 895 series connectors with matching 98-position dual-edge specifications. Cross-reference pinout diagrams and mechanical dimensions to ensure interchangeability without modifying the host PCB layout.
