895-100-500-201

Edgeboard Connectors Overview

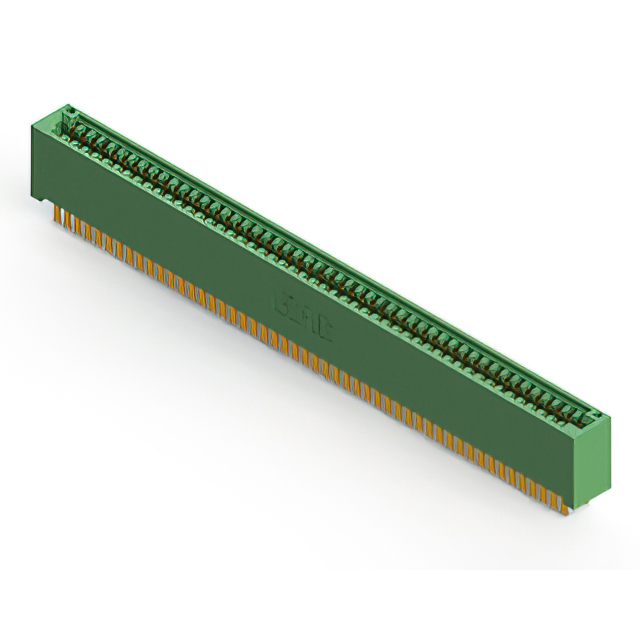

The EDAC Inc. 895-100-500-201 is a dual-edge female card edge connector from the 895 series, designed for high-density interconnect applications. It features 100 positions with a 0.100-inch (2.54mm) pitch and supports board thicknesses of 0.054 to 0.070 inches. Constructed with copper alloy contacts featuring gold plating and a black polyphenylene sulfide (PPS) insulator, it ensures reliable signal transmission. The component operates within a temperature range of -40°C to 125°C and utilizes a through-hole solder termination method.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• High-temperature PPS insulator material for stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust connectivity
• Telecommunications equipment interface modules
• Medical device internal circuit board connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure exact pin count, pitch, and termination style match your design requirements. Confirm RoHS compliance status and moisture sensitivity level prior to procurement. Cross-reference the manufacturer part number with distributor listings to validate authenticity and current availability status before finalizing purchase orders.

Edgeboard Connectors Selection Notes

Select this connector when a high-pin-count dual-edge interface is required with standard 0.100-inch spacing. Ensure the target PCB thickness falls within the specified 0.054 to 0.070-inch range for proper contact engagement. Consider the operating temperature range and environmental conditions to verify compatibility with the application's thermal profile and mechanical constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors, which are widely used in various electronic assemblies. The series offers multiple configurations to accommodate different pin counts and mounting styles. As a receptacle type, it pairs with corresponding card edge boards to establish electrical connections in compact and dense circuit layouts.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 895 Series Ordering Guide for verified substitute part numbers. Direct replacements must maintain identical pin count, pitch, and termination specifications to ensure mechanical and electrical compatibility without redesigning the host PCB.
