895-104-524-202

Edgeboard Connectors Overview

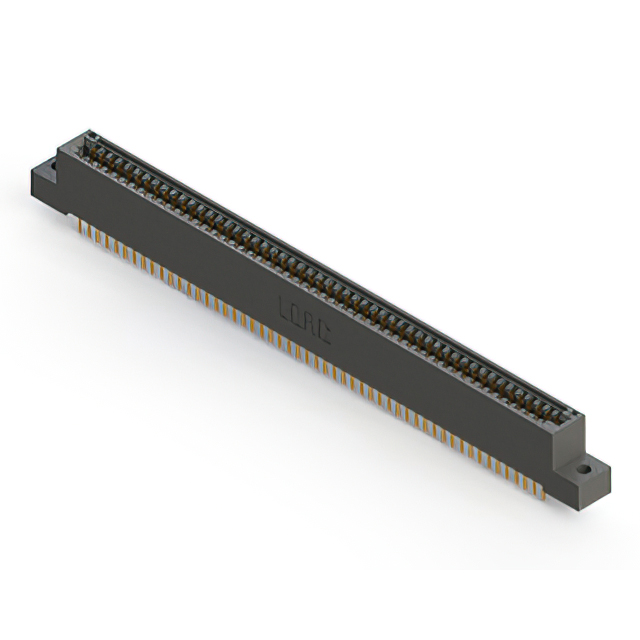

The EDAC Inc. 895-104-524-202 is a dual-edge female card edge connector featuring 104 positions with a 0.100" (2.54mm) contact spacing and 0.200" (5.08mm) row spacing. It utilizes gold-plated copper alloy cantilever contacts within a black polyphenylene sulfide (PPS) insulator. Designed for through-hole solder termination, it accepts printed circuit boards with thicknesses ranging from 0.062" to 0.070" (1.57mm to 1.78mm). The component operates reliably between -40°C and +125°C, ensuring stable electrical performance in demanding environments.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration providing high-density connectivity for non-specified board applications
• Gold-plated cantilever contacts ensure reliable signal transmission and durability
• High-profile PPS insulator body offers robust mechanical support and thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring high pin counts
• Telecommunications equipment backplanes
• Computing hardware motherboards and expansion cards

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 895 Series Ordering Guide to confirm exact physical dimensions and termination style. Ensure compatibility with the target PCB thickness range of 0.062" to 0.070". Confirm that the required mounting style matches the panel or chassis design specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count dual-edge interface is required with standard 0.100" pitch. The 104-position count supports complex signal routing needs. Verify that the application environment stays within the specified -40°C to +125°C operating temperature range. Ensure the PCB material can withstand the thermal requirements associated with the PPS insulator during assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series, which specializes in standard card edge connectors. The series is characterized by its versatility in accommodating various board thicknesses and offering multiple termination options. The 895-104 variant specifically addresses applications needing substantial I/O density within a compact footprint, leveraging the established reliability of the 895 family design.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 895 Series Ordering Guide for direct substitutes with differing position counts or row configurations. Cross-reference compatible parts from the same series to maintain consistent mechanical and electrical characteristics. Verify that any alternative maintains the 0.100" pitch and dual-edge female interface requirements.
