Edgeboard Connectors Overview

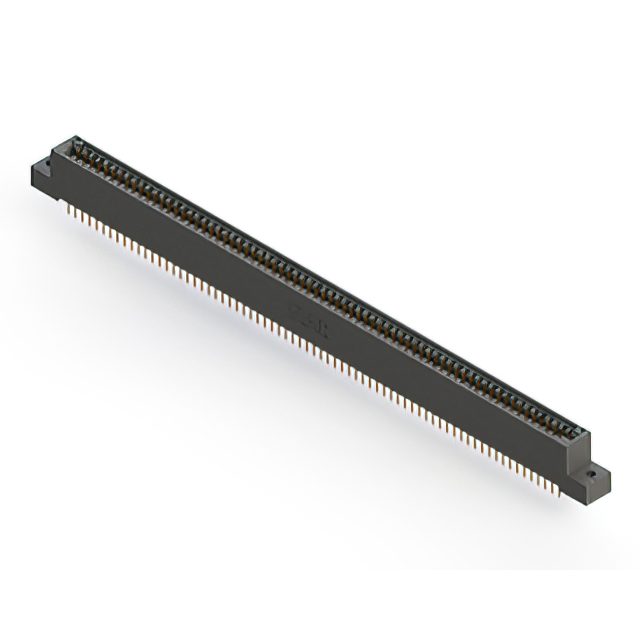

The EDAC Inc. 895-142-524-202 is a dual-edge female card edge connector with 142 positions and a 0.100-inch (2.54mm) pitch. It features gold-plated contacts, black PPS insulation, and flush mount installation with top openings. Designed for through-hole termination, it supports board thicknesses of 0.054 to 0.070 inches and operates from -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for non-specified card types
• Gold-plated contact surfaces for reliable signal transmission
• Flush mount design with unthreaded top opening flange

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment board connections
• Automotive electronic module interfaces

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes against official EDAC documentation to ensure correct flange and plating specifications. Confirm RoHS3 compliance status and moisture sensitivity level requirements for your assembly process before ordering.

Edgeboard Connectors Selection Notes

Select this connector when a high-density 142-position interface is required with a standard 0.100-inch pitch. Ensure the target PCB thickness falls within the 0.054 to 0.070 inch range for proper mating. Consider the operating temperature range and environmental conditions for long-term reliability.

Edgeboard Connectors Part Context

This component belongs to the EDAC 895 series of standard card edge connectors. The series offers various position counts and mounting options, providing standardized solutions for board-to-board or backplane applications in industrial and commercial electronics sectors.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives. Verify pin count, pitch, and mechanical dimensions match exactly before considering cross-references.
