895-144-525-807

Edgeboard Connectors Overview

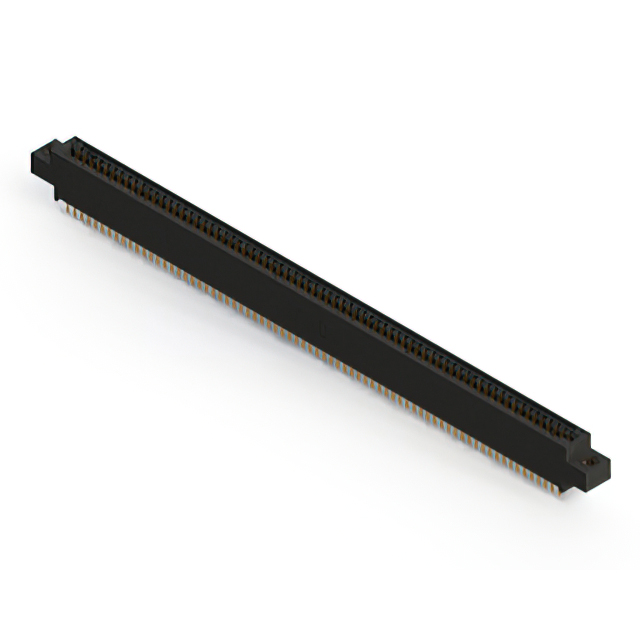

The EDAC Inc. 895-144-525-807 is a dual-edge female card edge connector designed for high-reliability applications. It features 144 positions with a 0.100-inch (2.54mm) contact spacing and 0.200-inch (5.08mm) row spacing. The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). Constructed with a black polyphenylene sulfide (PPS) insulator and gold-plated copper alloy contacts, it supports surface mount or through-hole termination. The unit operates within a temperature range of -40°C to +125°C and includes M3 threaded inserts for secure panel mounting.

Edgeboard Connectors Feature Summary

• High-profile insulator body constructed from polyphenylene sulfide for thermal stability
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Integrated flange features include top mount openings and M3 threaded inserts

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-panel connections
• Telecommunications infrastructure equipment
• Automotive electronic modules
• Medical device instrumentation
• Aerospace and defense avionics

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC 895 Series Ordering Guide to confirm mechanical dimensions and termination style. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS compliance status and moisture sensitivity level requirements prior to procurement to align with assembly process standards.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 144 positions is required for vertical panel mounting. The 0.100-inch pitch suits standard density layouts. Consider the high-profile body design if additional clearance is needed above the mating board. Verify that the M3 threaded insert configuration matches the chassis mounting holes.

Edgeboard Connectors Part Context

This part belongs to the EDAC 895 series of card edge connectors, which are engineered for demanding environments. The series offers various position counts and termination options. The 895-144 variant specifically addresses high-density interconnect needs in ruggedized electronics, providing a balance of electrical performance and mechanical durability.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 895 series parts with identical pin counts and spacing, such as the 895-144-525-804, provided mechanical tolerances match. Cross-brand replacements require strict verification of contact geometry, insulation material ratings, and mounting hole patterns to ensure functional equivalence.
