896-006-540-108

Edgeboard Connectors Overview

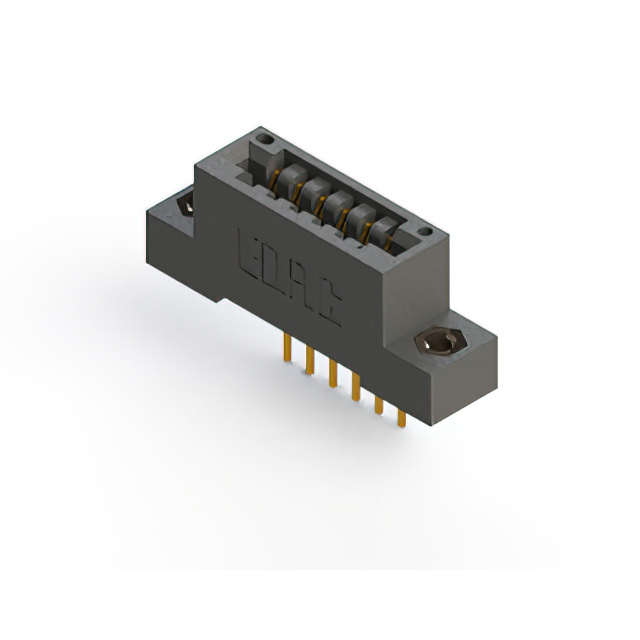

The EDAC Inc. 896-006-540-108 is a single-row standard card edge connector receptacle designed for panel mount applications. It features six positions with a 3.18 mm (0.125 inch) pitch and utilizes gold-plated cantilever contacts for reliable signal transmission. The housing is constructed from black Polyphenylene Sulfide (PPS), supporting a maximum operating temperature of +125°C and a minimum of -40°C. Designed for PCB thicknesses of 1.57 mm, this component employs wire wrap termination methods to ensure secure electrical connections in high-temperature environments.

Edgeboard Connectors Feature Summary

• Utilizes cantilever contact design for consistent mating force and reliable card edge engagement
• Constructed with high-temperature resistant Polyphenylene Sulfide (PPS) insulator material
• Features gold-plated contacts to ensure corrosion resistance and stable conductivity
• Includes flush mount flange with top opening and threaded insert for secure panel installation

Edgeboard Connectors Applications

• High-temperature industrial control systems requiring robust interconnects
• Medical equipment utilizing EDAC medical interconnect solutions
• Agricultural technology hardware exposed to harsh environmental conditions
• General-purpose electronic assemblies needing single-row card edge connectivity

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm terminal type and flange configuration. Ensure compatibility with the target PCB thickness of 1.57 mm and verify that the wire wrap termination method aligns with the assembly process. Confirm RoHS compliance status through the provided documentation before integration into regulated products.

Edgeboard Connectors Selection Notes

Select this model when a single-row, 6-position connector with a 0.125-inch pitch is required for panel-mounted applications. The choice is driven by the need for high-temperature performance up to 125°C and durable gold-plated cantilever contacts. Consider the wire wrap termination option if through-hole soldering is not preferred, and ensure the PPS housing meets thermal and chemical resistance requirements for the operational environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 896 series of high-temperature card edge connectors. The series is characterized by its use of Polyphenylene Sulfide (PPS) materials and gold-plated contacts, designed specifically for demanding environments. The 896 series offers various position counts and termination options, providing flexibility for different board thicknesses and mounting styles within industrial and medical sectors.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 6-position count, 3.18 mm pitch, single-row configuration, and wire wrap termination style. Verify mechanical dimensions and flange specifications with alternative suppliers to ensure physical compatibility.
