896-009-520-112

Edgeboard Connectors Overview

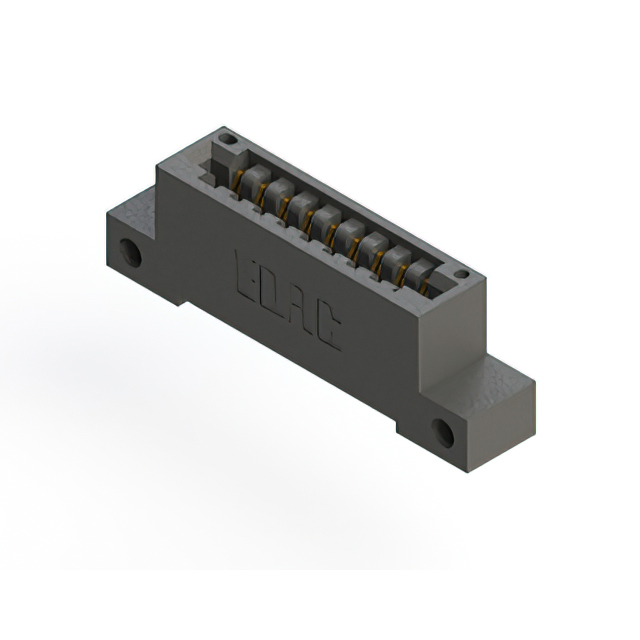

The EDAC Inc. 896-009-520-112 is a standard high-temperature card edge connector receptacle designed for reliable signal transmission in demanding environments. This single-row component features nine positions with a 3.175 mm (0.125 inch) pitch and a 6.35 mm row spacing. It utilizes gold-plated copper alloy contacts to ensure low contact resistance and corrosion resistance. The housing is constructed from black polyphenylene sulfide (PPS), providing thermal stability and mechanical strength. Designed for panel mount installation at a vertical angle, it accepts PCBs with a thickness of 1.57 mm. The unit employs a solder pin termination method for secure board attachment.

Edgeboard Connectors Feature Summary

• High-temperature resistant PPS housing for thermal stability
• Gold-plated copper alloy contacts for reliable conductivity
• Single-row configuration with precise 3.175 mm pitch
• Vertical panel mount design for space-efficient integration

Edgeboard Connectors Applications

• Medical interconnect solutions requiring sterilization compatibility
• Agricultural technology equipment operating in harsh environments
• Industrial control systems needing high-temperature reliability
• Automotive electronics applications

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact plating thickness, material grades, and packaging configurations. Ensure that the selected variant matches the required PCB thickness and mounting style for your specific assembly. Cross-reference the RoHS compliance status and any recent product change notifications to guarantee regulatory adherence and supply chain continuity before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a single-row interface with a 3.175 mm pitch is required for high-temperature applications. The vertical panel mount style suits designs where space conservation is critical. Verify that the target PCB thickness aligns with the 1.57 mm specification to ensure proper contact engagement. Consider the gold plating for environments where corrosion resistance is paramount over cost constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 896 series, which specializes in high-temperature card edge connectors. The series is engineered for durability in challenging conditions, including medical and agricultural sectors. The 896 series offers various position counts and pitch options, maintaining consistent housing materials and termination styles across the lineup to simplify inventory management for engineers designing robust electronic systems.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include 896-021-520-612 and 896-029-526-102, which share similar high-temperature characteristics but differ in position count and pitch. Verify dimensional compatibility and electrical ratings before substitution. No other direct cross-model replacements are confirmed in the provided documentation.
