896-017-526-602

Edgeboard Connectors Overview

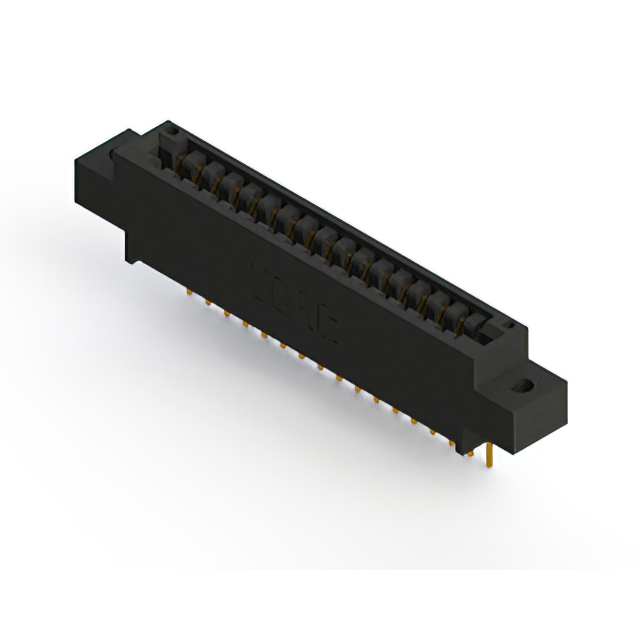

The EDAC Inc. 896-017-526-602 is a standard card edge connector receptacle designed for high-temperature applications. It features 17 positions with a single row configuration and a pitch of 3.18 mm (0.125 inches). The connector supports a board thickness of 1.57 mm and utilizes panel mount installation at a right angle. Contacts are gold-plated copper alloy, rated for 3 A current, while the housing is constructed from black polyphenylene sulfide (PPS) to withstand elevated thermal environments.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using polyphenylene sulfide housing material
• Gold-plated contacts ensure reliable signal transmission in demanding conditions
• Right-angle panel mount design facilitates efficient space utilization
• Single-row configuration provides standardized interconnection

Edgeboard Connectors Applications

• Medical equipment requiring robust interconnects
• Agricultural technology systems operating in harsh environments
• Industrial control panels with thermal exposure
• Communication infrastructure hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating and housing color specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Confirm that the right-angle panel mount style aligns with the mechanical enclosure design requirements. Cross-reference the manufacturer datasheet for any recent product change notifications or material updates.

Edgeboard Connectors Selection Notes

Select this component when a single-row card edge interface with a 3.18 mm pitch is required. The right-angle orientation is suitable for vertical mating connections within constrained panel spaces. Verify that the application environment exceeds standard temperature limits, necessitating the high-temperature PPS housing. Ensure the 3 A current rating meets the circuit load requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 896 series of high-temperature card edge connectors. The series is engineered for durability in challenging operational settings. EDAC provides comprehensive medical and agricultural interconnect solutions through this product line, emphasizing reliability and environmental resistance for critical system connections.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available.
