896-022-522-108

Edgeboard Connectors Overview

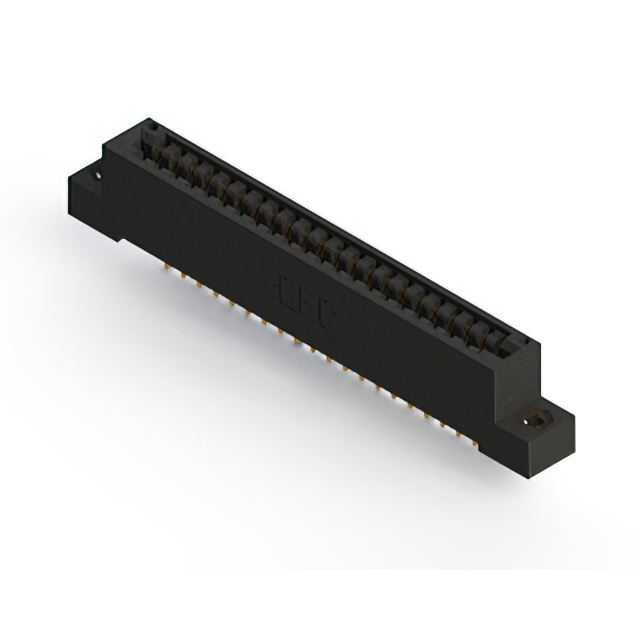

The EDAC Inc. 896-022-522-108 is a standard high-temperature card edge connector receptacle designed for vertical panel mount applications. It features 22 positions with a single row configuration and a pitch of 0.125 inches (3.18 mm). The unit utilizes gold-plated copper alloy contacts and a black polyphenylene sulfide (PPS) housing. It supports board thicknesses of 1.57 mm and operates within a temperature range of -40°C to +125°C, rated for 3 A current.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure installation
• High-temperature resistant PPS insulator material
• Gold-plated contacts for reliable signal transmission

Edgeboard Connectors Applications

• Industrial control systems requiring thermal stability
• Medical equipment interconnect solutions
• Agricultural technology harsh environment connectors

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to ensure correct termination type and plating specifications. Confirm that the intended PCB thickness aligns with the 1.57 mm requirement. Check regional distribution availability as some variants may have restricted shipping or limited supply status depending on the local distributor network.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 22-position connection is required in space-constrained panel mounts. Ensure the mating card edge thickness matches the specified 1.57 mm dimension. Consider the high-temperature rating if the operating environment exceeds standard commercial limits. Verify that the vertical orientation fits the mechanical assembly constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 896 series of high-temperature card edge connectors. The series is engineered for durability in demanding environments, including medical and agricultural applications. The 896 series typically offers various position counts and termination options, providing a standardized solution for robust electronic interconnections.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 896 series variants with matching pin counts and pitch, such as 896-008-522-108 for different position requirements. Cross-brand replacements require verifying identical pitch, board thickness, and mounting style compatibility.
