896-023-520-103

Edgeboard Connectors Overview

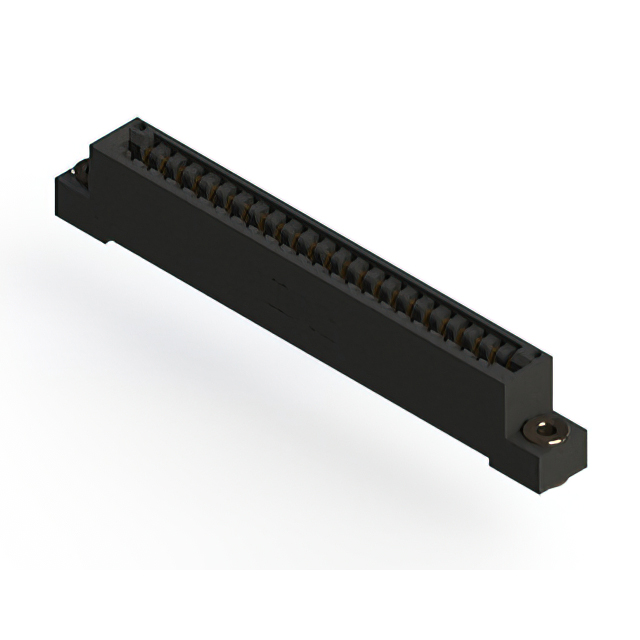

The EDAC Inc. 896-023-520-103 is a standard high-temperature card edge connector receptacle designed for reliable signal transmission in demanding environments. This component features a single row of contacts with a pitch of 3.175 mm (0.125 inches) and a row spacing of 6.35 mm (0.250 inches). It is engineered to accept printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). The unit utilizes gold-plated copper alloy contacts housed within a polyphenylene sulfide (PPS) insulator body, ensuring durability and low contact resistance. Designed for panel mount installation at a vertical angle, this connector supports solder pin termination methods. It operates within a temperature range of -40°C to +125°C and carries an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction utilizing polyphenylene sulfide materials
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Vertical panel mount configuration for secure board insertion
• Accepts standard 0.062 inch nominal thickness PCBs

Edgeboard Connectors Applications

• Industrial control systems requiring high thermal stability
• Medical interconnect solutions
• Agricultural technology equipment
• Harsh environment electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm contact plating, termination style, and housing material variations. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the vertical panel mount orientation aligns with the mechanical design constraints of the final assembly. Cross-reference the manufacturer part number with authorized distributors to ensure authenticity and traceability of the components.

Edgeboard Connectors Selection Notes

Select this component when a robust, high-temperature card edge solution is required for vertical panel mounting applications. The 3.175 mm pitch accommodates standard board layouts while providing sufficient spacing for signal integrity. Consider the PPS housing material for superior thermal performance compared to standard thermoplastics. Ensure the application does not exceed the maximum operating temperature of +125°C. Verify that the single-row configuration meets the I/O requirements of the system design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 896 series, which specializes in high-temperature card edge connectors. The series is characterized by its durable construction and suitability for rigorous operational conditions. Components in this family are often utilized in sectors such as medical devices and agricultural technology where reliability under stress is critical. The 896 series maintains consistent dimensional standards across various position counts to facilitate modular design approaches.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference documentation for verified substitute part numbers. Direct replacements must maintain identical pitch, row count, and mounting specifications to ensure mechanical fit. Verify that any alternative component matches the thermal rating and contact material properties of the original specification.
