896-031-541-104

Edgeboard Connectors Overview

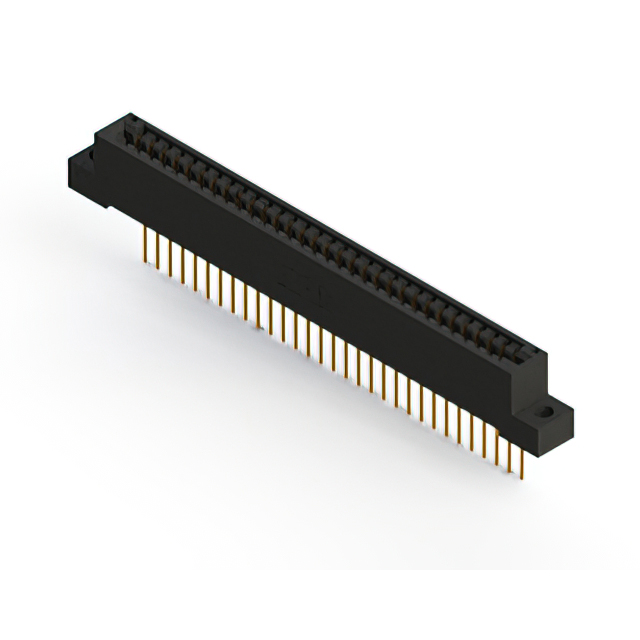

The EDAC Inc. 896-031-541-104 is a standard card edge connector receptacle designed for high-temperature applications. It features 31 positions with a 3.175 mm pitch and utilizes gold-plated copper alloy contacts. The component supports wire wrap termination and is constructed with a Polyphenylene Sulfide (PPS) housing. Rated for 3 A current, it operates within a temperature range of -40°C to +125°C and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• High-temperature capability suitable for demanding environments
• Gold-plated contacts ensure reliable signal transmission
• Polyphenylene Sulfide housing provides structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment utilizing EDAC medical interconnect solutions
• Agricultural technology hardware exposed to harsh conditions

Edgeboard Connectors Procurement Notes

Verify the specific pin count and termination style against official datasheets before integration. Confirm RoHS compliance status through manufacturer documentation. Check regional availability as distribution may be restricted in certain areas. Ensure panel mount requirements align with the vertical installation style specified for this series.

Edgeboard Connectors Selection Notes

Select this model when a 3.175 mm pitch card edge interface is required. Consider the 31-position configuration for circuit density needs. Verify that the operating environment stays within the specified thermal limits. Ensure compatibility with wire wrap assembly processes rather than solder pin or surface mount methods.

Edgeboard Connectors Part Context

This component belongs to the EDAC 896 series of standard card edge connectors. The series is engineered for durability in industrial and specialized sectors. It complements other EDAC interconnect solutions used in medical and agricultural technologies. The design focuses on maintaining electrical integrity under elevated temperatures.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official EDAC catalogs for cross-referencing compatible alternatives within the same series.
