896-032-540-802

Edgeboard Connectors Overview

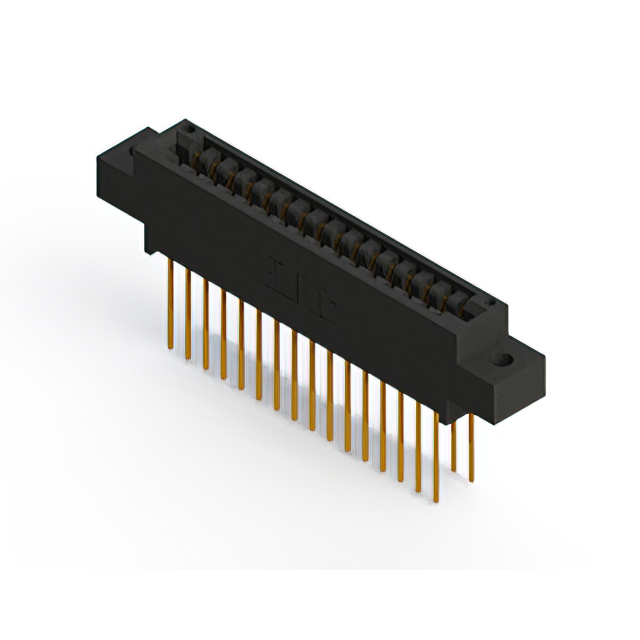

The EDAC Inc. 896-032-540-802 is a standard card edge connector receptacle designed for high-temperature applications. It features 32 positions with a 3.175 mm (0.125 inch) pitch and supports dual-edge mating. The unit utilizes gold-plated copper alloy contacts and a black Polyphenylene Sulfide (PPS) housing. Rated for 3 A current, it operates within a temperature range of -40°C to +125°C. This panel-mount component employs wire wrap termination and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure card insertion
• High-temperature resistant PPS insulator construction
• Gold-plated copper alloy contact surfaces
• Wire wrap termination method

Edgeboard Connectors Applications

• Medical interconnect solutions
• Agricultural technology equipment
• Harsh environment industrial systems

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Check RoHS compliance details directly from the datasheet. Confirm availability status as supply may be restricted in certain regions. Ensure the selected variant matches the required pitch and row configuration for your design.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge interface with a 3.175 mm pitch is required. Consider the 3.175 mm board thickness specification for PCB layout. Verify that the wire wrap termination style aligns with your assembly process. Ensure the operating temperature range meets the environmental demands of the target application.

Edgeboard Connectors Part Context

This component belongs to the EDAC 896 series of high-temperature card edge connectors. The series offers various position counts and mounting angles while maintaining consistent electrical ratings. It is categorized under standard card edge receptacles within the broader EDAC interconnect portfolio.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 896-series variants such as 896-038-540-802 or 896-018-540-612 if different pin counts are needed. Verify mechanical dimensions and termination types before substitution.
