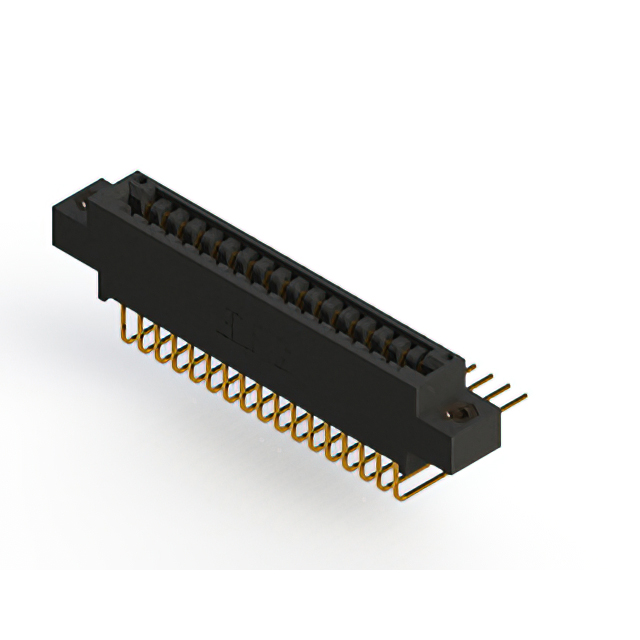

896-034-558-807

$57.43

Description：CONN EDGE DUAL FMALE 34POS 0.125
Series：896
Mfr：EDAC Inc.
Package：Bulk

SKU:cab80c868093 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

896-034-558-807 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 34POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 896-034-558-807

Description：CONN EDGE DUAL FMALE 34POS 0.125
Series：896
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：17
Number of Positions：34
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.125" (3.18mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 896-034-558-807

896-034-558-807

Edgeboard Connectors Overview

The EDAC Inc. 896-034-558-807 is a standard card edge connector receptacle featuring 34 positions with a 3.175 mm pitch and dual rows. Designed for high-temperature environments, it accepts printed circuit boards with a nominal thickness of 1.57 mm. The component utilizes gold-plated copper alloy contacts and a polyphenylene sulfide (PPS) housing to ensure reliable electrical performance. It supports a current rating of 3 A and offers an insulation resistance of 5 GOhms. Operating within a temperature range of -40°C to +125°C, the unit employs panel mount installation with a right-angle configuration and solder pin termination.

Edgeboard Connectors Feature Summary

High-temperature capability utilizing polyphenylene sulfide insulator body
Gold-plated copper alloy contacts for corrosion resistance
Dual-edge female connector design for secure board engagement

Edgeboard Connectors Applications

Medical interconnect solutions
Agricultural technology equipment
Harsh environment industrial applications

Edgeboard Connectors Procurement Notes

Verify specific RoHS compliance details through official manufacturer documentation prior to integration. Confirm that the right-angle panel mount style aligns with enclosure constraints. Ensure the 1.57 mm board thickness requirement matches the target PCB specifications. Check current supply status as availability may be restricted in certain regions.

Edgeboard Connectors Selection Notes

Select this model when a dual-row card edge connector with a 3.175 mm pitch is required for high-temperature operation. The PPS housing material provides necessary thermal stability up to +125°C. Verify that the 34-position count and 3 A current rating meet the system's electrical requirements. Ensure the right-angle panel mount form factor fits the mechanical design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 896 series of standard card edge connectors. The series is engineered for durability in demanding sectors such as medical and agricultural technologies. The 896-034-558-807 variant specifically addresses needs for high-temperature reliability and robust mechanical connection in compact electronic assemblies.
