896-044-555-201

Edgeboard Connectors Overview

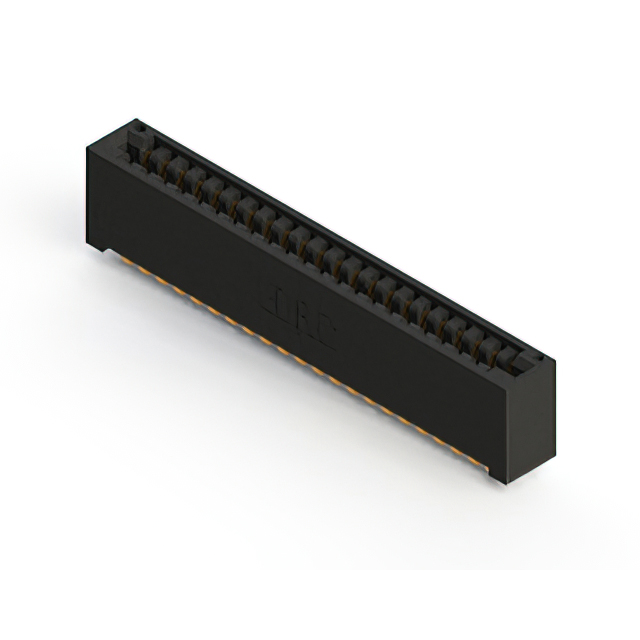

The EDAC Inc. 896-044-555-201 is a standard card edge connector receptacle designed for high-reliability applications. It features a dual female configuration with 44 positions arranged in two rows. The connector utilizes a 0.125-inch (3.175 mm) pitch and supports wire wrap termination methods. Constructed with a black insulator, this component is rated for operation within a temperature range of -40°C to +125°C. It is specifically engineered for panel mount installation in vertical orientation, ensuring secure connection for double-sided card edge PCBs.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for double-sided card edge interface
• Wire wrap termination method for robust electrical connections
• Vertical panel mount design for secure structural integration
• High-temperature rating suitable for demanding operational environments

Edgeboard Connectors Applications

• Medical interconnect solutions requiring reliable signal transmission
• Agricultural technology systems exposed to harsh environmental conditions
• Industrial control panels utilizing vertical mounting constraints
• High-temperature electronic assemblies requiring durable connectors

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required termination styles and contact plating specifications. Confirm that the selected variant matches the intended panel thickness and board edge guide requirements. Cross-reference the part number with official distributor catalogs to validate current availability status and lead times before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row female interface is required for double-sided card edge boards. Ensure the application environment does not exceed the specified operating temperature limits. Verify that the wire wrap termination capability aligns with the assembly process and that the panel mount style fits the mechanical enclosure design constraints effectively.

Edgeboard Connectors Part Context

This component belongs to the EDAC 896 series of standard card edge connectors. The series offers various position counts and termination options tailored for diverse industrial needs. As a receptacle, it interfaces directly with corresponding card edge connectors on printed circuit boards, providing a stable connection point within larger electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct substitute part numbers within the same series. Verify that any replacement maintains identical pitch, row count, and termination type to ensure mechanical and electrical compatibility without redesigning the host assembly.
