896-046-555-204

Edgeboard Connectors Overview

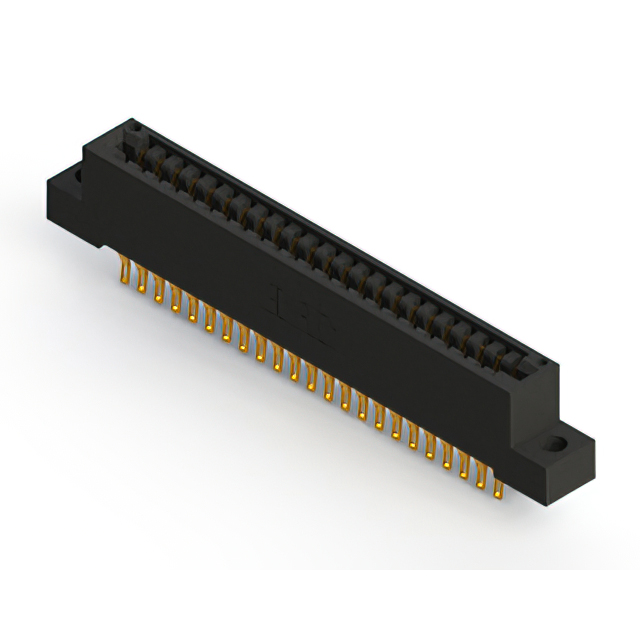

The EDAC Inc. 896-046-555-204 is a high-temperature card edge connector from the 896 series, designed for reliable signal transmission in demanding environments. It features a dual-edge receptacle configuration with 46 positions and a 0.125-inch (3.18mm) pitch. The connector utilizes gold-plated contacts on a copper alloy base to ensure low contact resistance and durability. Constructed with a black polyphenylene sulfide (PPS) insulator, it supports panel mount installation. The unit operates within a temperature range of -40°C to +125°C and is rated for 3A current per contact.

Edgeboard Connectors Feature Summary

• Dual-edge receptacle design accommodates double-sided circuit boards
• Gold-plated contacts provide corrosion resistance and stable electrical performance
• Polyphenylene sulfide housing ensures high thermal stability and mechanical strength
• Panel mount style offers secure vertical installation for industrial applications

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Telecommunications equipment interfaces
• Medical device internal connections
• Energy sector instrumentation panels

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating thickness, and termination type. Ensure compatibility with target board thickness specifications before procurement. Cross-reference RoHS compliance status with the latest manufacturer datasheet to meet regulatory requirements for your specific region and application standards.

Edgeboard Connectors Selection Notes

Select this component when dual-edge connectivity is required for space-constrained panel mounts. The 0.125-inch pitch suits standard card edge designs. Verify that the operating environment stays within the -40°C to +125°C range. Confirm that the PPS material properties align with chemical exposure risks in the deployment scenario.

Edgeboard Connectors Part Context

This part belongs to the EDAC 896 Series, which specializes in high-temperature card edge connectors. The series is engineered for robust performance in harsh conditions, utilizing durable materials like PPS and gold plating. It serves as a critical interface solution for sectors prioritizing long-term reliability and thermal resilience in electronic assemblies.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult EDAC technical support for direct equivalents or cross-references based on specific mechanical and electrical constraints.
