896-050-521-802

Edgeboard Connectors Overview

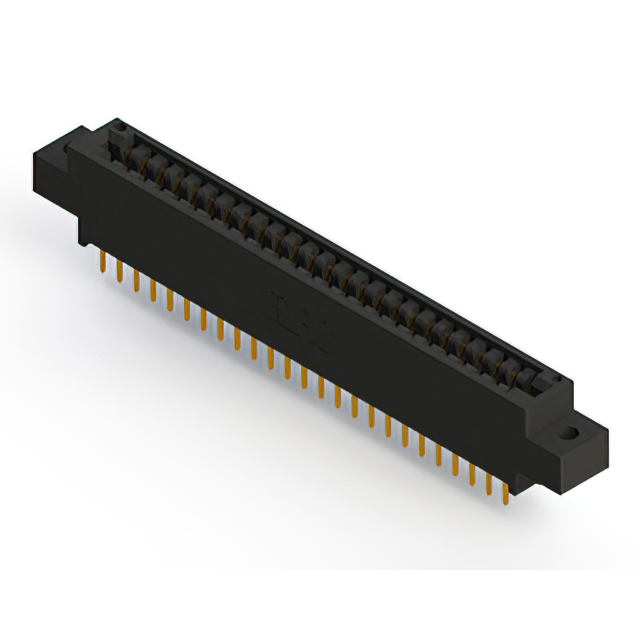

The EDAC Inc. 896-050-521-802 is a high-temperature card edge connector from the 896 Series, designed for dual-edge mating configurations. It features 50 positions with a 0.125-inch (3.18 mm) pitch and utilizes female contacts. The connector employs gold-plated terminals to ensure reliable signal transmission in demanding thermal environments. Constructed with a black insulator, this receptacle is engineered for robust performance under elevated temperature conditions.

Edgeboard Connectors Feature Summary

• High-temperature rated construction suitable for demanding thermal applications
• Dual-edge female contact configuration for secure board insertion
• Gold-plated terminal surfaces for enhanced conductivity and corrosion resistance

Edgeboard Connectors Applications

• Medical interconnect solutions requiring thermal stability
• Agricultural technology equipment operating in harsh environments
• Industrial control systems with elevated temperature exposure

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC channels or certified distributors. Confirm datasheet alignment for the specific suffix 802 regarding material specifications. Ensure storage conditions maintain integrity prior to assembly. Cross-reference ordering information with official manufacturer documentation to prevent substitution errors during procurement processes.

Edgeboard Connectors Selection Notes

Select this model when dual-edge mating and high-temperature resilience are required. The 0.125-inch pitch accommodates standard board thicknesses while providing ample spacing. Gold plating offers superior durability compared to tin alternatives. Evaluate thermal requirements against the series rating before implementation in critical circuit designs.

Edgeboard Connectors Part Context

This component belongs to the EDAC 896 Series, which specializes in high-temperature card edge connectors. The series provides reliable interconnect solutions for sectors such as medical and agricultural technology. The 896-050-521-802 variant specifically addresses needs for dual-edge connectivity with substantial pin counts in thermally challenging scenarios.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers within the 896 Series. Ensure replacement components match the 50-position count and 0.125-inch pitch specifications. Verify that alternative models maintain equivalent high-temperature ratings and gold-plated contact finishes for functional compatibility.
