896-096-556-808

Edgeboard Connectors Overview

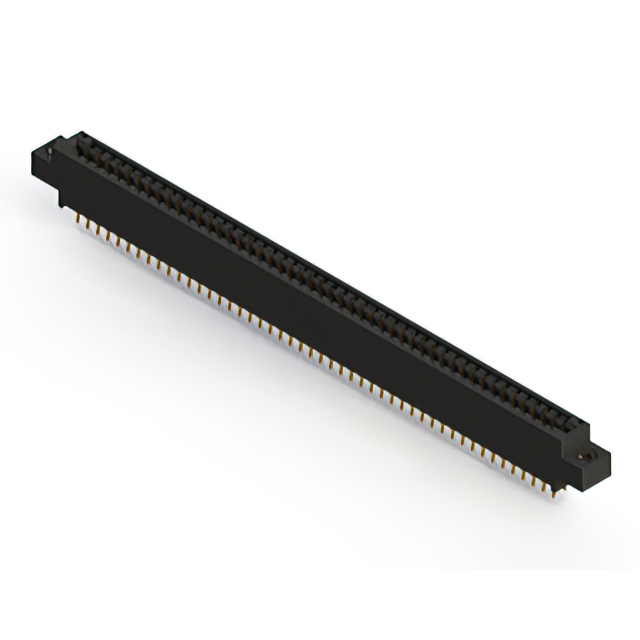

The EDAC Inc. 896-096-556-808 is a standard high-temperature card edge connector receptacle featuring 96 positions in a dual-row configuration. It utilizes a 3.175 mm (0.125 inch) pitch with gold-plated copper alloy contacts and a polyphenylene sulfide (PPS) housing. Designed for panel mount installation at a vertical angle, this component supports a maximum operating temperature of +125°C and a minimum of -40°C. The unit accommodates a board thickness of 1.57 mm and provides an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction utilizing polyphenylene sulfide insulators suitable for demanding thermal environments.
• Dual-edge female contact design with gold plating to ensure reliable signal transmission and corrosion resistance.
• Vertical panel mount orientation providing secure mechanical stability for integrated circuit board connections.

Edgeboard Connectors Applications

• Industrial control systems requiring robust high-temperature connectivity
• Communication equipment infrastructure
• Medical device internal module interconnections

Edgeboard Connectors Procurement Notes

Verify the specific pin count and row configuration against the target PCB layout before ordering. Confirm that the panel mounting style aligns with the enclosure design requirements. Ensure the operating environment temperature range falls within the specified limits to maintain connector integrity and electrical performance standards.

Edgeboard Connectors Selection Notes

Select this model when a dual-row card edge interface with a 3.175 mm pitch is required for high-temperature applications. Consider the 96-position capacity and vertical panel mount style as primary constraints. Evaluate the need for gold-plated contacts and PPS material properties against environmental exposure conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 896 Series, which specializes in high-temperature card edge connectors. The series offers various position counts and mounting options tailored for industrial and communication sectors. The 896-096-556-808 variant specifically addresses needs for higher density connections in thermally challenging scenarios.

Edgeboard Connectors Replacement Considerations

Cross-reference other models within the EDAC 896 series for alternative position counts or mounting styles if the 96-position specification does not match the design requirements. Verify compatibility with existing PCB footprints and panel cutouts when considering substitutes.
