89882-310LF

Headers, Receptacles, Female Sockets Overview

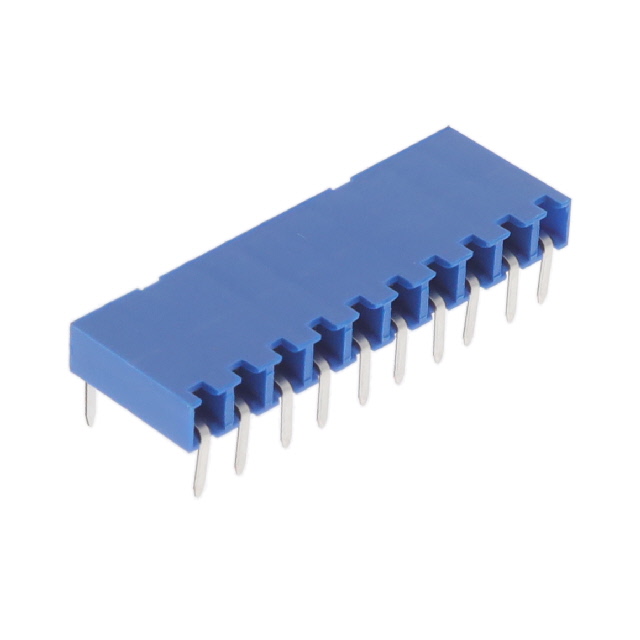

The Amphenol ICC (FCI) 89882-310LF is a Dubox series board-to-board and mezzanine connector receptacle. It features 10 positions with a 2.54 mm pitch in a single row configuration. Designed for right-angle surface mount installation, the unit utilizes phosphor bronze contacts plated with gold over a nickel barrier. The component supports a current rating of 2 A and withstands voltages up to 1 kV. Operating temperatures range from -65 °C to +125 °C, housed within a thermoplastic body.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle surface mount receptacle design for vertical board integration
• Gold-plated phosphor bronze contacts ensure reliable signal transmission
• Single row configuration with 2.54 mm spacing for standard density layouts

Headers, Receptacles, Female Sockets Applications

• High-density electronic assemblies requiring vertical interconnects
• Industrial control systems utilizing standard board-to-board interfaces
• Consumer electronics manufacturing with space-constrained PCB layouts

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating thickness and termination style. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability varies by region. Ensure the selected variant matches the required mounting orientation and pin count for the target application.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, right-angle connection is required between stacked boards. The 2.54 mm pitch accommodates standard footprint designs, while the gold plating offers corrosion resistance for general-purpose environments. Evaluate thermal requirements against the 125 °C maximum operating limit before finalizing the design.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Dubox family of connectors, which are engineered for high-reliability applications. The series provides various positioning options and contact counts to support diverse board-to-board and mezzanine architectures. The 89882-310LF represents a specific configuration within this broader portfolio.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult the official cross-reference guide for verified substitutes. Generic equivalents may differ in stack height or retention force specifications.
