8J38470001

Crystals Overview

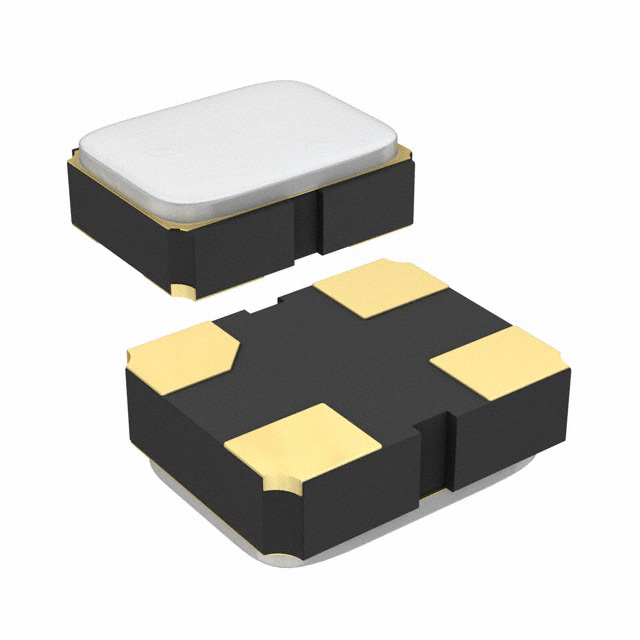

The TXC Corporation 8J38470001 is a surface-mount crystal oscillator designed for precision timing applications. It operates at a fundamental frequency of 48 MHz with a load capacitance of 7 pF. The component utilizes a four-terminal SMD package without leads, ensuring reliable integration into compact circuit boards. It supports standard operating temperature ranges suitable for general electronic equipment.

Crystals Feature Summary

• Provides stable 48 MHz clock signals for digital systems
• Features leadless SMD construction for automated assembly
• Optimized for low power consumption in portable devices

Crystals Applications

• Microcontroller clock sources
• Communication interface timing
• Consumer electronics control circuits

Crystals Procurement Notes

Verify the specific load capacitance and frequency tolerance requirements against the target circuit design before procurement. Ensure the selected variant matches the required operating temperature range and package dimensions for the PCB layout. Confirm RoHS compliance status if environmental regulations apply to the final product assembly process.

Crystals Selection Notes

Select this component when a 48 MHz reference signal is required for synchronous data transmission or processing units. Consider the 7 pF load capacitance compatibility with the host oscillator circuit to maintain frequency accuracy. Evaluate the physical footprint constraints to ensure the leadless SMD package fits within the designated area on the printed circuit board.

Crystals Part Context

This part belongs to the TXC Corporation crystal oscillator portfolio, which specializes in frequency control components. The 8J series typically denotes standard performance crystals optimized for cost-effective mass production. These components serve as foundational timing elements for various industrial and consumer electronic applications requiring precise frequency stability.

Crystals Replacement Considerations

Cross-reference with other 48 MHz 7 pF SMD crystals from compatible manufacturers. Verify pinout compatibility and electrical parameter equivalence before substitution.
