8Q-32.000MAHE-T

Crystals Overview

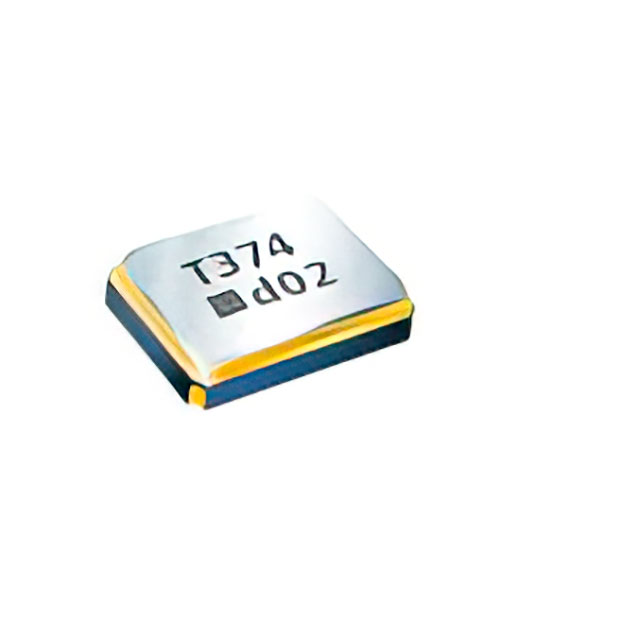

The FTS 8Q-32.000MAHE-T is a surface-mount crystal resonator operating at a fundamental frequency of 32 MHz. It features a load capacitance of 12 pF and an equivalent series resistance (ESR) of 80 Ohms. The component exhibits frequency stability and tolerance specifications of ±30 ppm. Designed for compact electronic assemblies, it utilizes a 4-SMD, No Lead package with dimensions of 1.6 x 1.2 mm. The device supports an operating temperature range from -40°C to +85°C.

Crystals Feature Summary

• Compact 4-SMD no-lead footprint suitable for space-constrained designs
• Fundamental mode operation providing stable 32 MHz reference signal
• Wide industrial temperature range capability for diverse environmental conditions

Crystals Applications

• Microcontroller clock sources
• Communication module timing references
• Digital signal processing circuits

Crystals Procurement Notes

Verify the specific datasheet version for the 8Q-32.000MAHE-T to confirm exact ESR and load capacitance values, as some distributor listings may conflate parameters with similar variants like the MAAV or MEEV series. Ensure the supplier provides official FTS documentation rather than generic descriptions. Cross-reference the package outline drawing to confirm compatibility with your PCB land pattern, specifically regarding the no-lead terminal configuration.

Crystals Selection Notes

Select this component when a 32 MHz fundamental frequency is required with moderate stability requirements of ±30 ppm. The 12 pF load capacitance must match the oscillator circuit design. Consider the 80 Ohm ESR against the oscillator amplifier's drive level constraints. This SMD variant is appropriate for automated assembly processes requiring small form factors.

Crystals Part Context

This part belongs to the FTS 8Q series of ultra-small surface-mount crystals. The series offers various frequency options and stability grades within a standardized 1.6x1.2 mm package. The MA suffix typically denotes specific stability and packaging characteristics within the FTS product line, distinguishing it from other series like the MEEV which may offer tighter tolerances.

Crystals Replacement Considerations

Direct substitutes include the 8Q-32.000MEEV-T for higher stability applications, though parameter differences exist. The 8Q-32.000MAAV-T is another variant but differs in load capacitance and tolerance. Verify electrical compatibility before substitution.
