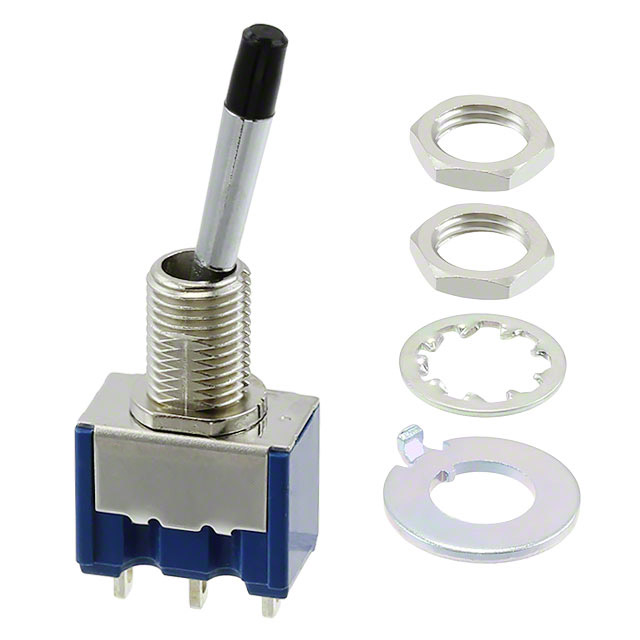

8S1011-Z

8S1011-Z is listed in the Toggle Switches range at ChipApex. The manufacturer field lists Nidec Components Corporation. Its product description is SWITCH TOGGLE SPDT 6A 125V. Review the specifications below when checking this part for your BOM.

Toggle Switches specifications for 8S1011-Z

• Description：SWITCH TOGGLE SPDT 6A 125V
• Series：8S
• Mfr：Nidec Components Corporation
• Package：Bulk
• Mounting Type：Panel Mount
• Circuit：SPDT
• Switch Function：On-On
• Current Rating (Amps)：6A (AC), 4A (DC)
• Voltage Rating - AC：125 V
• Voltage Rating - DC：30 V
• Actuator Type：Standard Round with Cap
• Actuator Length：15.20mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Termination Style：Solder Lug
• Panel Cutout Dimensions：Circular - 6.50mm Dia
• Bushing Thread：1/4-40
• Ingress Protection：-
• Features：Black Cap
• Operating Temperature：-20°C ~ 85°C

Toggle Switches datasheet and documents for 8S1011-Z
