8T49N488A-000ASGI

Overview

The 8T49N488A-000ASGI is a quad PLL universal frequency translator utilizing FemtoClock NG technology. It integrates low-phase noise frequency translation, jitter attenuation, and alarm monitoring functions for networking applications. The device features four independent PLLs with programmable outputs supporting LVPECL or LVDS signaling. Input frequencies range from 8kHz to 710MHz, while output frequencies are programmable from 0.98MHz up to 1300MHz. It operates on a full 2.5V ± 5% supply within an ambient temperature range of -40°C to 85°C.

Feature Summary

• Quad PLL architecture with fully independent loops
• FemtoClock NG technology for low phase noise performance
• Programmable output frequencies from 0.98MHz to 1300MHz
• Supports I²C serial interface for register programming

Applications

• Networking equipment clock generation
• Communication system timing solutions
• High-speed data transmission interfaces

Part Context

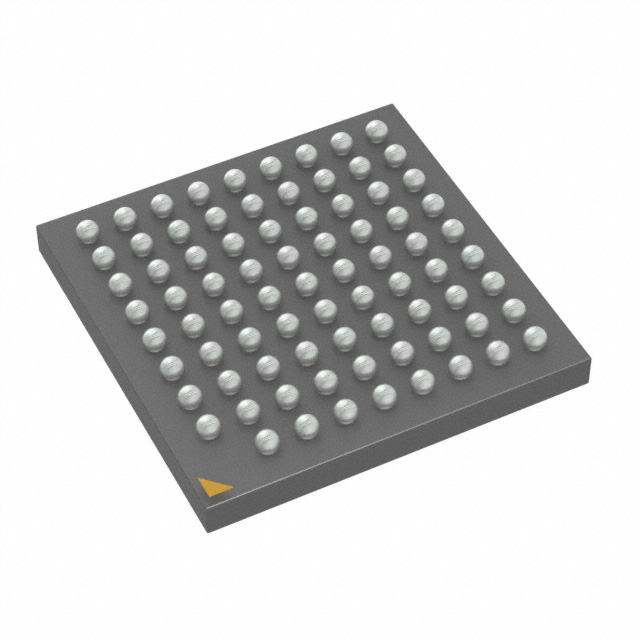

This component belongs to the Universal Frequency Translator family, specifically designed as a quad PLL variant. It shares core FemtoClock NG technology with dual-PLL (8T49N244I), tri-PLL (8T49N366I), and other quad PLL models like the 8T49N445I. The device is housed in a lead-free 10mm × 10mm CABGA package compliant with RoHS 6 standards.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Designers should verify compatibility with existing clock distribution networks when considering alternative devices.
