8Z-37.400MEEE-T

Crystals Overview

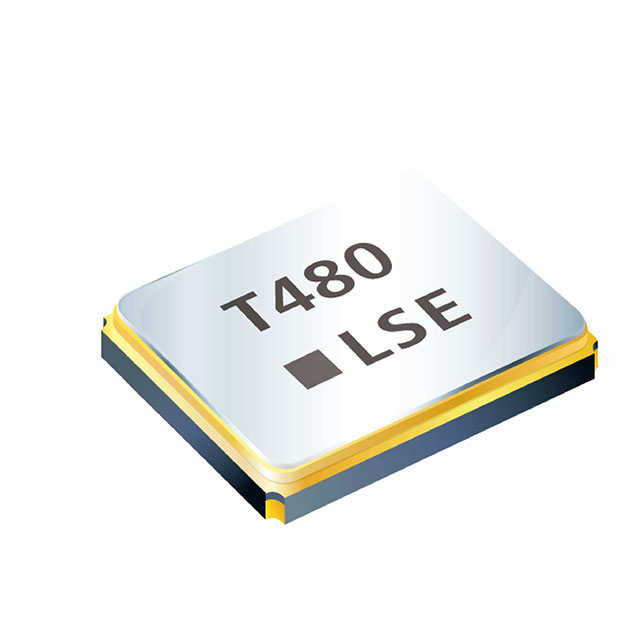

The 8Z-37.400MEEE-T is a seam seal MHz quartz crystal manufactured by TXC Corporation, designed for surface-mount applications. It operates at a fundamental frequency of 37.4 MHz with a load capacitance of 12 pF and an equivalent series resistance (ESR) of 60 Ohms. The component features a frequency tolerance of ±10 ppm at 25°C and maintains ±10 ppm stability across the -20°C to +70°C operating temperature range. Housed in a compact 2.5 mm x 2.0 mm ceramic package with a maximum height of 0.55 mm, it utilizes a four-pad SMD configuration.

Crystals Feature Summary

• Seam sealed ceramic construction for environmental protection
• High accuracy frequency stability within specified temperature ranges
• Compact surface-mount footprint suitable for space-constrained designs

Crystals Applications

• Precision timing circuits requiring stable reference frequencies
• Consumer electronics utilizing surface-mount assembly processes
• Industrial control systems operating within standard commercial temperature limits

Crystals Procurement Notes

Verify the specific suffix 'E' against the manufacturer's current part number guide to confirm the 12 pF load capacitance specification. Ensure the selected variant matches the required -20°C to +70°C temperature range. Confirm RoHS compliance status through official documentation prior to integration into final products.

Crystals Selection Notes

Select this component when a 37.4 MHz fundamental mode crystal is required with tight frequency tolerance. The 12 pF load capacitance must align with the host circuit's oscillator design. Consider the 60 Ohm ESR value for impedance matching requirements. The seam-sealed package offers durability compared to non-sealed alternatives.

Crystals Part Context

This part belongs to the 8Z series of high-accuracy quartz crystals from TXC Corporation. The series specializes in seam-sealed MHz oscillators that combine precision timing with robust physical construction. These components are engineered for reliability in demanding electronic environments while maintaining small form factors.

Crystals Replacement Considerations

The 8Z-37.400MEEQ-T serves as a similar alternative within the same product line. Verify that the replacement maintains identical electrical parameters, specifically the 12 pF load capacitance and 60 Ohm ESR, before substitution.
