9-103329-0-31

Headers, Male Pins Overview

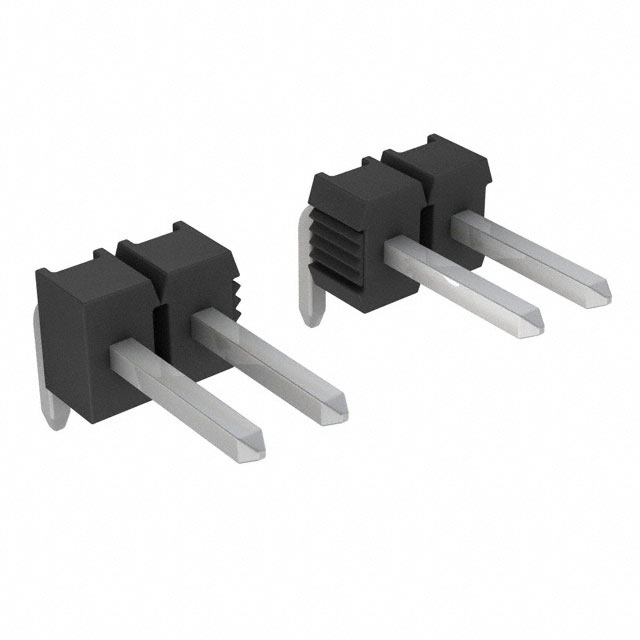

The 9-103329-0-31 is a rectangular board connector from the AMPMODU Mod II series, manufactured by TE Connectivity. It features a header configuration with 31 positions and a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting at a right angle, this component utilizes copper alloy contacts with tin-lead plating to ensure reliable signal transmission. The housing is constructed from black thermoplastic insulation rated UL94 V-0 for flammability. It operates within a temperature range of -65°C to 105°C and supports a rated current of 3A per contact.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design for efficient PCB layout
• AMPMODU Mod II series compatibility for standardized interconnection
• Thermoplastic insulation with UL94 V-0 flammability rating

Headers, Male Pins Applications

• General purpose board-to-board interconnections
• Industrial control system circuit boards
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 31-position count and right-angle orientation. Confirm that the tin-lead contact plating is acceptable for the intended application environment, as lead-free alternatives may exist in other variants. Ensure the operating temperature range of -65°C to 105°C meets the thermal requirements of the final assembly.

Headers, Male Pins Selection Notes

Select this component when a 31-pin right-angle header is required for through-hole assembly. The 2.54 mm pitch is standard for many legacy and general-purpose designs. Consider the 3A current rating and -65°C to 105°C operating range to ensure suitability for the specific electrical and thermal loads of the target circuit board application.

Headers, Male Pins Part Context

This connector belongs to the AMPMODU Mod II family, a widely used line of rectangular connectors known for their reliability and versatility. The AMPMODU series provides various configurations including headers, housings, and sockets, facilitating modular electronic system design across multiple industries.

Headers, Male Pins FAQ

What is the contact material and plating for this connector?

The contacts are made of copper alloy and feature tin-lead plating.

Is this connector RoHS compliant?

Based on available documentation, this specific part number is not RoHS compliant due to its tin-lead contact plating.
