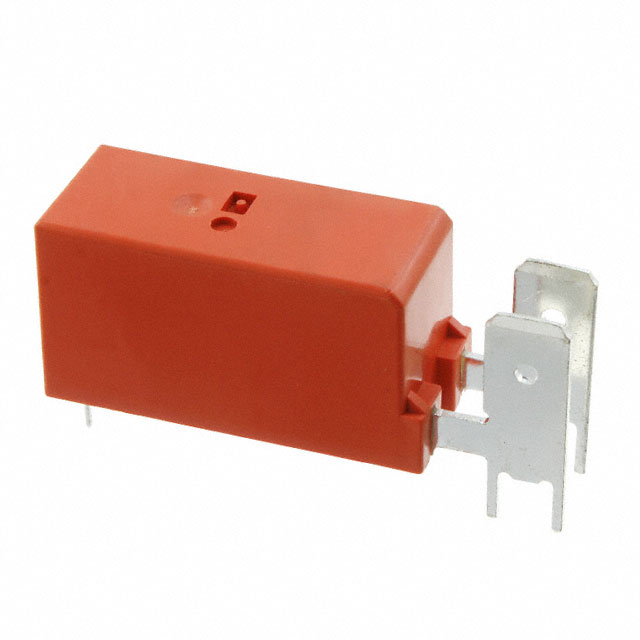

9-1415513-1

9-1415513-1

Description：RELAY GEN PURPOSE SPST 16A 24V
Series：RF, SCHRACK
Mfr：TE Connectivity Potter & Brumfield Relays
Package：Tray

SKU:d6d6682b39f9 Category: Power Relays, Over 2 Amps Brand: TE Connectivity Potter & Brumfield Relays

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RELAY GEN PURPOSE SPST 16A 24V
Series：RF, SCHRACK
Mfr：TE Connectivity Potter & Brumfield Relays
Package：Tray
Mounting Type：Through Hole
Coil Voltage：24VDC
Contact Form：SPST-NO (1 Form A)
Contact Rating (Current)：16 A
Switching Voltage：400VAC - Max
Load - Max Switching：6400VA
Coil Current：16.7 mA
Coil Type：Non Latching
Features：-
Termination Style：PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating：Sealed - Flux Protection
Coil Insulation：Class F
Must Operate Voltage：16.8 VDC
Must Release Voltage：2.4 VDC
Operating Temperature：-40°C ~ 85°C
Contact Material：Silver Nickel (AgNi)
Approval Agency：CQC, cURus, VDE
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：11 ms
Release Time：7 ms
