9-1609095-0

Overview

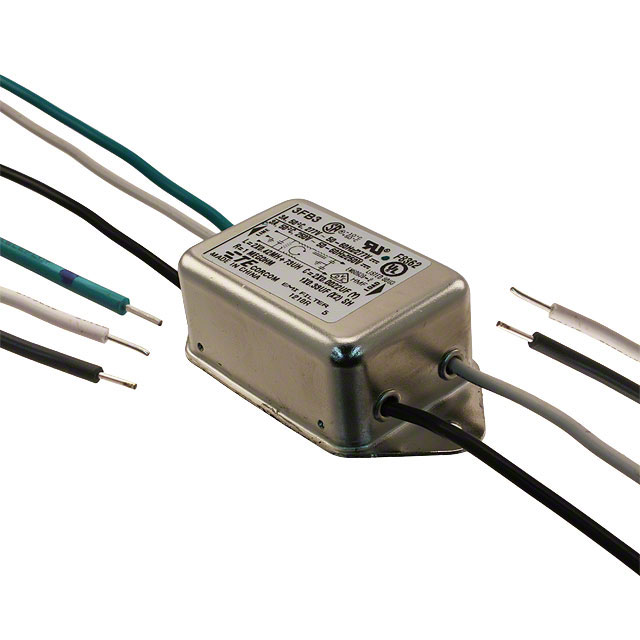

The TE Connectivity Corcom Filters part number 9-1609095-0 is a single-phase EMC/EMI line filter designed for commercial applications. It features a current rating of 3 A and operates at a voltage of 277 VAC with a frequency range of 50/60 Hz. The unit utilizes wire lead termination and is configured as a single-stage filter. It is intended for chassis or panel mounting via mounting holes.

Feature Summary

• Provides EMI/RFI noise suppression through single-stage filtering architecture
• Designed specifically for lighting devices and fluorescent lamp circuits
• Utilizes wire lead connections for circuit integration

Applications

• Lighting devices
• Fluorescent lamps
• Related lighting equipment

Procurement Notes

Verify the exact voltage rating against your system requirements, as this component is rated for 277 VAC. Confirm that the single-stage filtering performance meets your specific electromagnetic interference mitigation needs. Ensure the wire lead termination style matches your existing wiring harness or connection method before finalizing procurement.

Selection Notes

Select this component when a single-phase filter with a 3 A rating is required for 277 VAC systems. It is suitable for applications where single-stage attenuation is sufficient for noise reduction. Consider the wire lead configuration for ease of installation in lighting fixtures or related equipment.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial use. The 9-1609095-0 variant is part of their lineup addressing electromagnetic compatibility in electrical systems, particularly those involving lighting infrastructure.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
