9-1609095-1

Overview

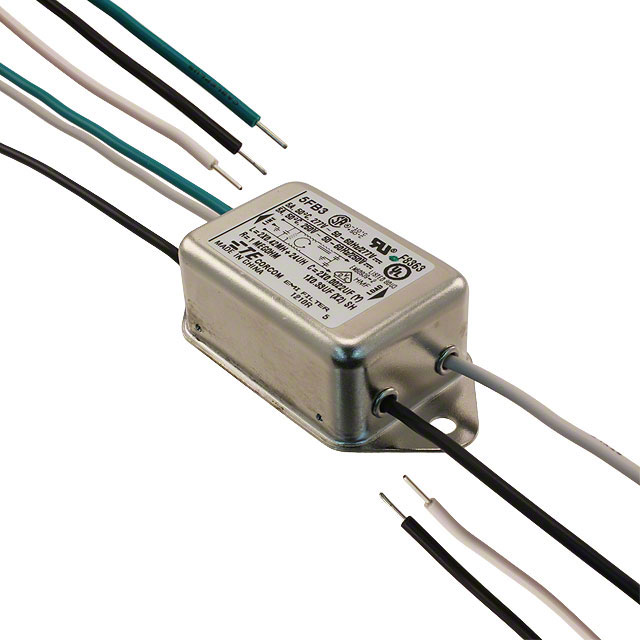

The TE Connectivity Corcom Filters part number 9-1609095-1 is a single-phase EMC/EMI line filter designed for robust electrical noise suppression. It features a maximum current rating of 5 A and operates at 277 V AC/DC with a frequency range of 50/60 Hz. The unit utilizes a single-stage configuration and employs wire leads for termination. This component is engineered to provide effective interference filtering in applications requiring reliable power line conditioning.

Feature Summary

• Provides single-stage electromagnetic compatibility (EMC) and radio frequency interference (RFI) suppression
• Engineered for stable operation across 50/60 Hz power frequencies
• Utilizes wire lead termination for direct circuit integration

Applications

• Single-phase power line noise reduction
• Electrical equipment requiring EMI/RFI mitigation
• Industrial control systems

Procurement Notes

Verify the exact part number 9-1609095-1 against official TE Connectivity documentation to confirm specifications. Ensure the application environment supports the 277 V AC/DC rating and 5 A current limit. Confirm that wire lead termination matches your assembly requirements. Check for RoHS compliance status in the latest datasheet before procurement.

Selection Notes

Select this component when single-phase EMI/RFI filtering is required for circuits operating at 277 V AC/DC. The 5 A current rating defines the maximum load capacity. Verify that the single-stage topology meets your attenuation needs. Ensure wire lead connections are compatible with your system's wiring harness or terminal block design.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for industrial and commercial electronics. The Corcom brand is recognized for providing reliable EMI/RFI solutions. This specific model addresses single-phase applications where moderate current handling and standard frequency operation are sufficient for noise suppression.

Replacement Considerations

Public confirmed substitute part numbers were not identified in the provided source material.
