Product Detailed Parameters
- Description：RF ANT 2.4GHZ/4.9GHZ PCB TRACE
- Series：Prestta™
- Mfr：KYOCERA AVX
- Package：Bulk
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
- Frequency (Center/Band)：2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz
- Frequency Range：2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.9GHz
- Antenna Type：PCB Trace
- Number of Bands：4
- VSWR：-
- Return Loss：-10dB
- Gain：2dBi, 4dBi, 5dBi, 6dBi
- Features：Cable - 100mm
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.031" (0.80mm)
- Applications：Bluetooth, Wi-Fi, WLAN, Zigbee™
- Power - Max：-
Download product information
Overview

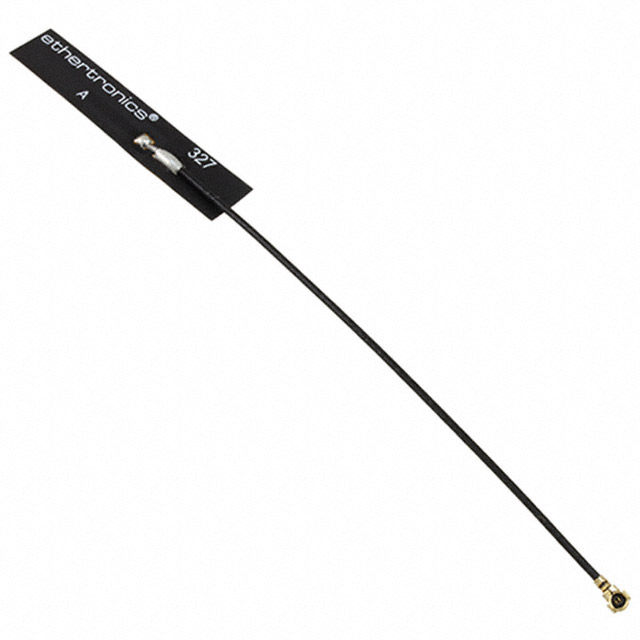

The KYOCERA AVX 9000130 is a Prestta WLAN embedded antenna designed for wireless communication applications. It operates across multiple frequency bands, specifically supporting 2.4 GHz, 4.9 GHz, 5.2 GHz, and 5.8 GHz frequencies. This component complies with the 802.11 a/b/g/n standards and includes specific support for Japan regulatory requirements. The antenna utilizes a PCB trace design type to facilitate integration into compact electronic devices.
Feature Summary
- Supports multi-band operation including 2.4, 4.9, 5.2, and 5.8 GHz frequencies
- Complies with 802.11 a/b/g/n wireless standards
- Features an integrated 100mm cable for connectivity
Applications
- Bluetooth modules
- Wi-Fi enabled devices
- WLAN systems
- Zigbee networks
Procurement Notes
Verify the exact manufacturer designation, as some sources list Ethertronics/AVX. Confirm the lead time of six weeks if applicable to your supply chain. Ensure the product description matches the RF Antenna category and PCB Trace type. Validate that the 100mm cable feature is included in the specific order configuration.
Selection Notes
Select this model when multi-band WLAN support is required for 802.11 a/b/g/n protocols. Consider the integrated 100mm cable for connection flexibility. Ensure compatibility with Bluetooth and Zigbee ecosystems if those protocols are part of the system design. Verify Japan-specific frequency compliance if the device will be deployed in that region.
Part Context
This component belongs to the Prestta series of embedded antennas from Kyocera AVX. It is categorized under RF Antennas within the broader portfolio of advanced electronic components. The series focuses on providing reliable wireless connectivity solutions for modern IoT and communication devices.
Replacement Considerations
Check for other Prestta series models with similar frequency coverage. Verify interface compatibility and cable length requirements before substituting. Ensure any alternative part supports the same 802.11 standards and regional regulations.
