9000352F0-AA10L0100

Overview

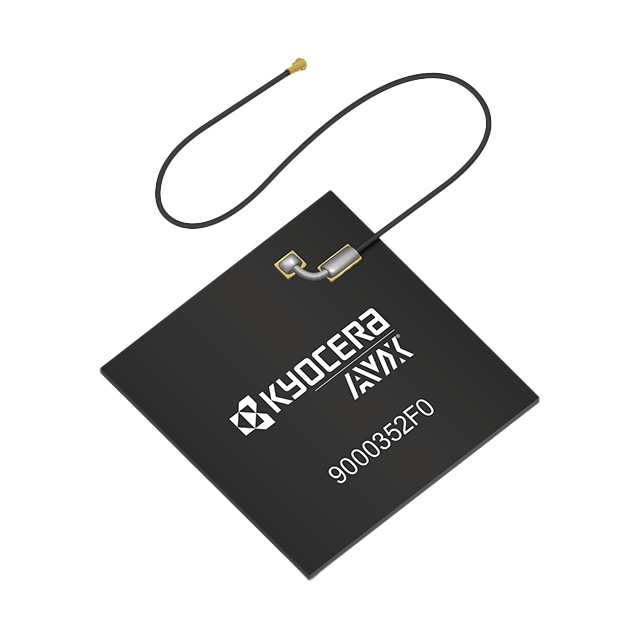

The KYOCERA AVX 9000352F0-AA10L0100 is a flexible printed circuit (FPC) antenna designed for Wi-Fi 6E and Bluetooth applications. It operates within the frequency range of 5.925 to 7.125 GHz, supporting protocols including WiFi 6E, WLAN, ZigBee, and BLE. The component features a linear polarization with a gain of 2.6 dBi and a characteristic impedance of 50 ohms. This antenna is specifically engineered for integration onto metal surfaces, addressing design constraints in compact electronic devices.

Feature Summary

• Engineered for direct integration onto metal chassis surfaces without performance degradation
• Supports multi-protocol wireless standards including Wi-Fi 6E, Bluetooth, and ZigBee
• Utilizes flexible printed circuit technology for thin form factor integration

Applications

• Wi-Fi 6E enabled consumer electronics
• Bluetooth low energy (BLE) IoT devices
• Compact wireless routers and access points
• Metal-cased portable computing devices

Procurement Notes

Verify the specific ordering suffix AA10L0100 against the manufacturer's current datasheet to ensure compatibility with your assembly requirements. Confirm that the antenna is rated for operation on metal surfaces as specified. Check for any recent updates to the product lifecycle status or recommended replacement parts before finalizing procurement orders.

Selection Notes

Select this component when the application requires a low-profile antenna solution capable of functioning effectively on conductive metal enclosures. It is suitable for designs prioritizing support for high-frequency Wi-Fi 6E bands alongside standard Bluetooth connectivity. Ensure the host device layout accommodates the flexible PCB dimensions and impedance matching requirements for optimal signal transmission.

Part Context

This part belongs to KYOCERA AVX's portfolio of FPC antennas designed for modern wireless communication needs. These components utilize laser direct structuring technology to achieve precise antenna geometries on flexible substrates. The series addresses the industry demand for smaller, thinner device designs while maintaining robust wireless performance in space-constrained environments.

Replacement Considerations

Consult official KYOCERA AVX documentation for verified substitute part numbers. Cross-reference technical specifications such as frequency range, gain, and impedance to ensure functional equivalence if considering alternative components from other manufacturers.
