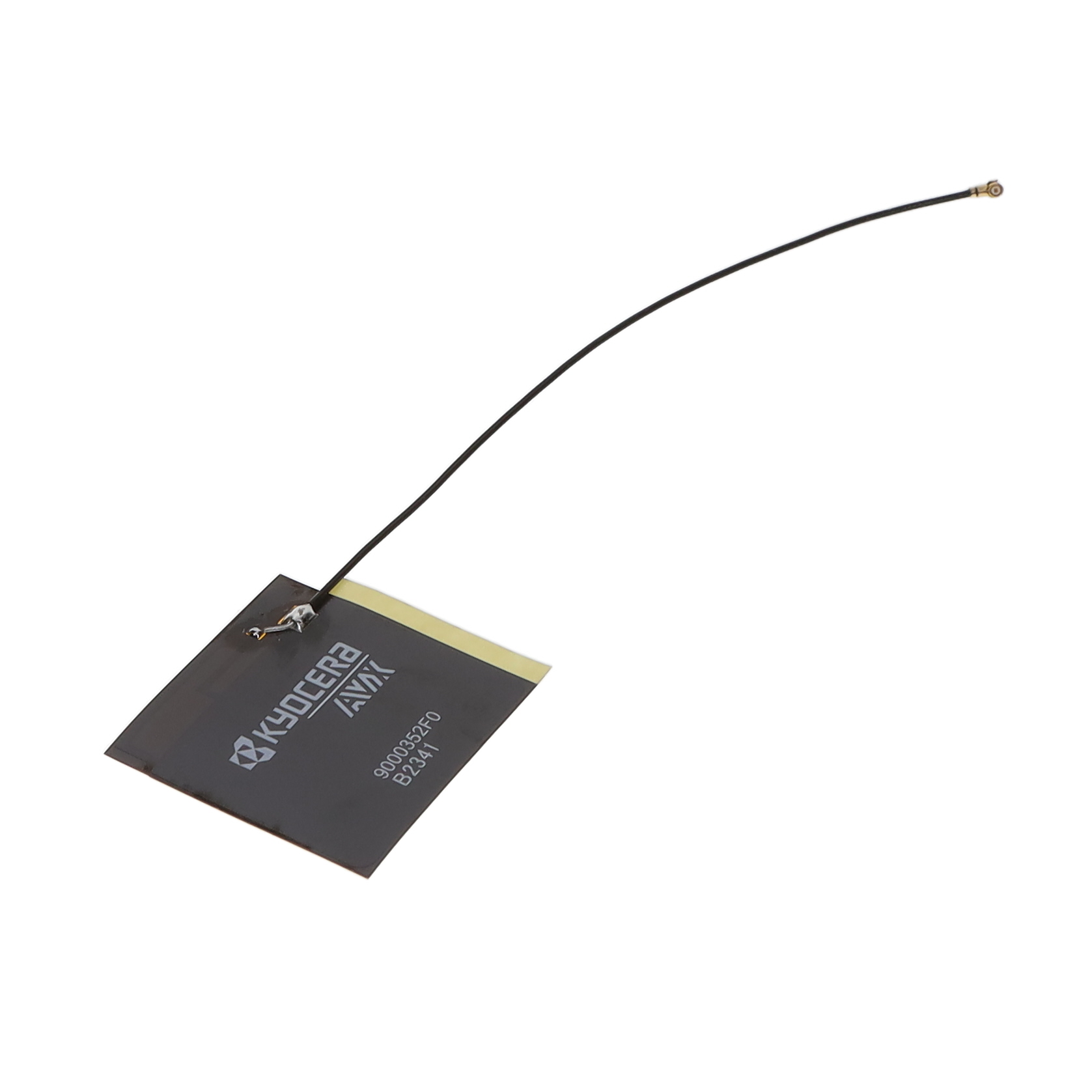

9000352F0-AE20L0100

$3.86

Description：WI-FI 6E/BLUETOOTH FPC ANTENNA F
Series：-
Mfr：KYOCERA AVX
Package：Bag

SKU:48c53058e8bf Category: RF Antennas Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：WI-FI 6E/BLUETOOTH FPC ANTENNA F
Series：-
Mfr：KYOCERA AVX
Package：Bag
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：2.44GHz, 5.5GHz, 6.525GHz
Frequency Range：2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Antenna Type：Flat Patch
Number of Bands：3
VSWR：3
Return Loss：-
Gain：3.2dBi, 3dBi, 2.6dBi
Features：Cable - 100mm
Termination：MHF3, W.FL
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.063" (1.60mm)
Applications：WLAN, Zigbee™
Power - Max：2 W

Download product information

9000352F0-AE20L0100

Overview

The KYOCERA AVX 9000352F0-AE20L0100 is a wide-band RF antenna designed for Wi-Fi 6E, Bluetooth, and Zigbee applications. It operates across center frequencies of 2.44GHz, 5.5GHz, and 6.525GHz. The component features adhesive mounting and utilizes an MHF3 connector interface.

Feature Summary

Supports multi-protocol wireless communication including Wi-Fi 6E, Bluetooth, and Zigbee
Designed for integration into compact device architectures
Utilizes adhesive mounting for secure attachment to metal surfaces

Applications

Wi-Fi 6E enabled devices
Bluetooth connectivity modules
Zigbee network components

Procurement Notes

Verify the specific suffix AE20L0100 against official KYOCERA AVX documentation to confirm exact frequency bands and connector type. Ensure compatibility with MHF3 interfaces and adhesive mounting requirements before procurement.

Selection Notes

Select this model for designs requiring integrated support for 2.4GHz, 5GHz, and 6GHz bands in thin form factors. Confirm that the adhesive mounting method aligns with the target enclosure design and that the MHF3 connector fits the PCB layout.

Part Context

This part belongs to the 9000352F0 series of FPC antennas from KYOCERA AVX. These antennas are engineered for metal surface integration, addressing performance challenges in smaller and thinner electronic device designs.

Replacement Considerations

Check the 9000352F0-AA10L0100 variant for potential functional differences due to suffix variations. Verify official substitution lists from KYOCERA AVX before replacing.
