9000440F0-AA12L0150

Overview

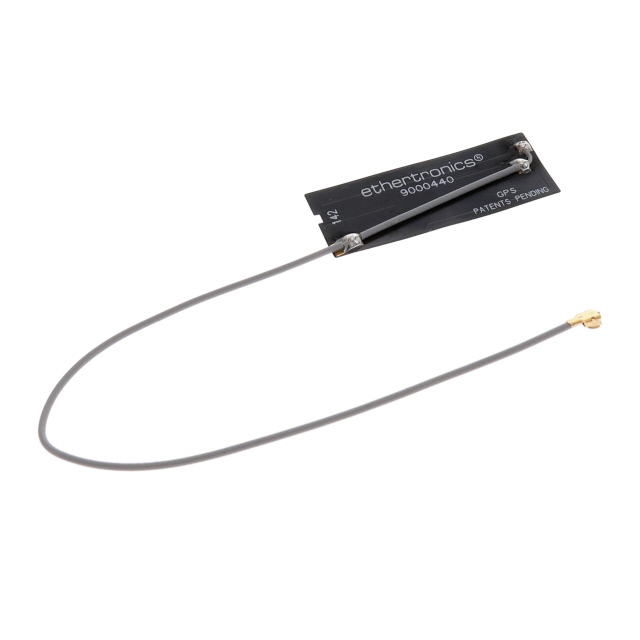

The KYOCERA AVX 9000440F0-AA12L0150 is a flexible printed circuit (FPC) GNSS antenna designed for embedded applications. It supports GPS, GLONASS, BeiDou, and Galileo systems within the 1.593 GHz to 1.61 GHz frequency range. The component features a U.FL connector and a 150 mm cable length. With a gain of 2.5 dBi and 50 Ohm impedance, it ensures reliable signal reception in M2M designs.

Feature Summary

• Supports multi-constellation GNSS including GPS, GLONASS, BeiDou, and Galileo
• Flexible FPC design suitable for space-constrained embedded devices
• Integrated U.FL connector with 150 mm lead length

Applications

• Machine-to-machine (M2M) communication modules
• Embedded global navigation satellite system receivers
• Portable tracking devices requiring adhesive mounting

Procurement Notes

Verify the specific ordering suffix AA12L0150 matches the required 150 mm cable length and U.FL connector type. Confirm that the frequency range covers all intended GNSS constellations for your application. Ensure the adhesive backing specification aligns with the target surface material for secure PCB integration.

Selection Notes

Select this model when a low-profile, flexible antenna solution is required for multi-band GNSS reception. The 150 mm cable provides routing flexibility away from the main PCB. Consider the 2.5 dBi gain and 50 Ohm impedance for standard RF interface compatibility in compact electronic assemblies.

Part Context

This part belongs to KYOCERA AVX's embedded GNSS antenna portfolio, targeting high-performance positioning in M2M designs. It serves as an alternative to standard patch antennas where form factor constraints necessitate a flexible trace configuration. The product line emphasizes strong signal reception capabilities.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing RF front-end circuits before considering alternative models.
