Product Detailed Parameters
- Description：RF ANT 875MHZ WHIP TILT SMA MALE
- Series：-
- Mfr：KYOCERA AVX
- Package：Bulk
- RF Family/Standard：General ISM
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：875MHz
- Frequency Range：790MHz ~ 960MHz
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：-
- Return Loss：-17dB
- Gain：3.4dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：-
- Applications：ISM, LoRa, LPWAN, Sigfox
- Power - Max：-
Download product information
Overview

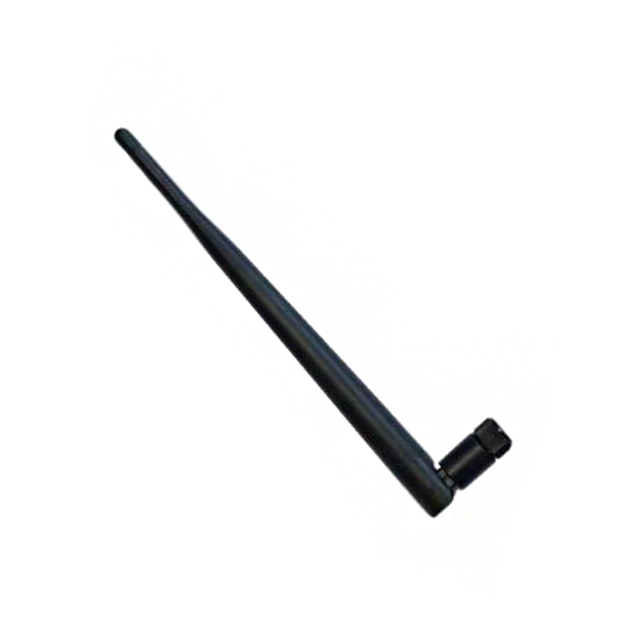

The KYOCERA AVX 9000984-XLPDNB is an RF antenna designed for ISM band applications. It operates within a frequency range of 790 MHz to 960 MHz, with specific configurations supporting 875 MHz and 790-960 MHz bands. The component features a whip type design equipped with an SMA male connector. This indoor antenna is categorized under cellular solutions including GSM, LTE, 2G, 3G, 4G, and 5G technologies.
Feature Summary
- Whip style antenna construction
- SMA male connector interface
- ISM band operational capability
Applications
- Indoor wireless communication systems
- GSM network infrastructure
- LTE connectivity modules
Procurement Notes
This product is no longer manufactured by the supplier. Procurement activities should verify current availability through authorized distributors or secondary market channels. Importers shipping to the United States must account for potential tariff costs, which are calculated at the time of shipment. Compliance with RoHS standards is indicated in available documentation.
Selection Notes
Engineers selecting this component must confirm compatibility with the required frequency band, specifically noting variations between 790-960 MHz and 875 MHz specifications. The SMA male connector type dictates mating interface requirements. As the part is discontinued, alternative sourcing strategies and lead time assessments are necessary for ongoing production needs.
Part Context
KYOCERA AVX manufactures passive electronic components, including antennas for industrial, commercial, automotive, and medical sectors. The 9000984 series represents their indoor antenna portfolio, supporting various cellular standards. This specific model falls within their broader catalog of standard and custom antenna solutions designed for diverse user requirements.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Due to the discontinued status, engineers should consult official replacement guides or contact the manufacturer directly for equivalent component recommendations.
