9001002

Overview

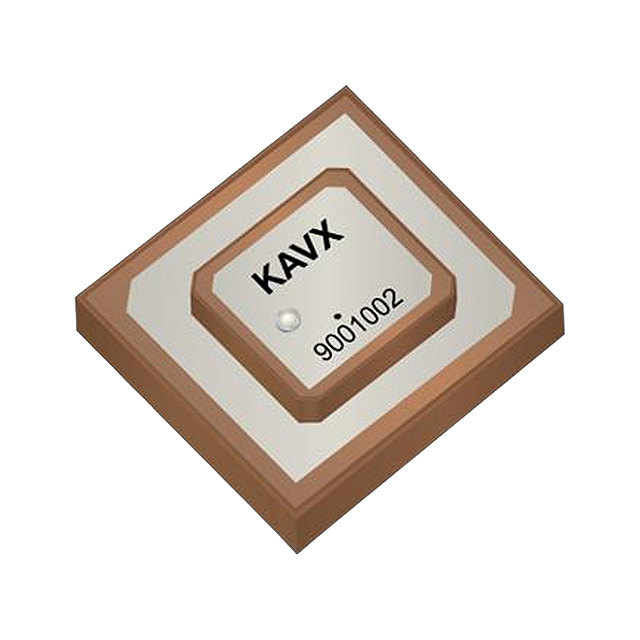

The KYOCERA AVX 9001002 is a GPS L1/L2 ceramic stacked patch antenna designed for high-precision positioning applications. It features a compact physical footprint of 38x38 mm with a height of 8.16 mm, constructed from durable ceramic materials to ensure environmental stability. The component supports dual-band reception for both L1 and L2 frequency bands, enabling enhanced accuracy in geodetic and agricultural contexts. It utilizes a pin adhesive mounting style suitable for through-hole integration, providing a robust mechanical solution for GNSS systems requiring reliable signal acquisition in demanding operational environments.

Feature Summary

• Dual-band support for GPS L1 and L2 frequencies
• Ceramic stacked construction for structural integrity
• Pin adhesive mounting configuration

Applications

• Precision agriculture systems
• Geodetic positioning equipment
• GNSS receiver modules

Procurement Notes

Verify the specific datasheet revision when sourcing this component to ensure compatibility with current design requirements. Confirm that the pin adhesive mounting method aligns with the target PCB assembly process. Check RoHS compliance status if required by project specifications. Ensure the 38x38 mm form factor fits within the designated enclosure constraints before finalizing procurement decisions.

Selection Notes

Select this model when dual-band L1/L2 performance is critical for application accuracy. The ceramic construction offers advantages in harsh environments compared to polymer alternatives. Consider the through-hole pin adhesive interface for mechanical stability. Evaluate the 8.16 mm height profile against spatial limitations in the final assembly design to ensure proper fitment.

Part Context

This part belongs to the KYOCERA AVX RF antenna portfolio, specifically targeting GNSS applications. It represents a specialized solution for users requiring precise location data beyond standard single-band receivers. The product line focuses on delivering reliable performance for professional surveying and automated machinery navigation tasks.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult official KYOCERA AVX resources for potential cross-reference options or newer generation replacements.
