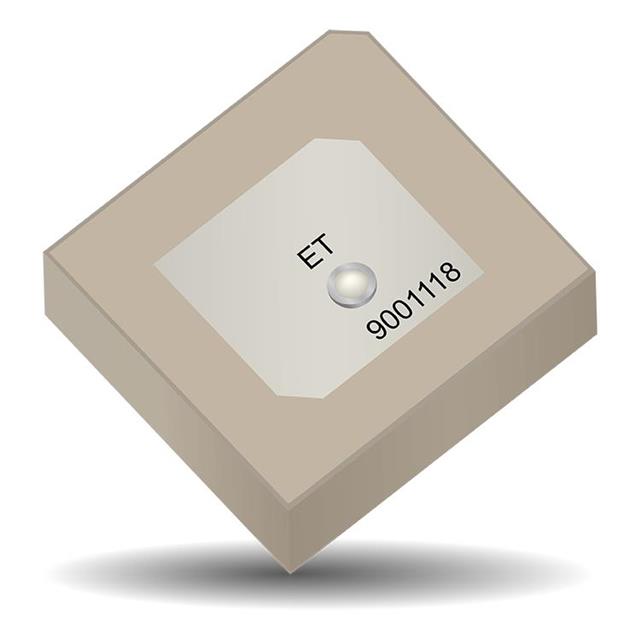

9001118

$1.62

Description：ANTENNA PATCH, 5G V2X D0231
Series：-
Mfr：KYOCERA AVX
Package：Box

SKU:3dd171d434d6 Category: RF Antennas Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：ANTENNA PATCH, 5G V2X D0231
Series：-
Mfr：KYOCERA AVX
Package：Box
RF Family/Standard：-
Frequency Group：SHF (f > 4GHz)
Frequency (Center/Band)：5.8875GHz
Frequency Range：5.85GHz ~ 5.925GHz
Antenna Type：Ceramic Patch
Number of Bands：1
VSWR：-
Return Loss：-15dB
Gain：4dBi
Features：-
Termination：Pin
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Adhesive
Height (Max)：0.157" (4.00mm)
Applications：DSRC
Power - Max：-

Download product information

9001118

Overview

The KYOCERA AVX 9001118 is a V2X/DSRC ceramic patch antenna designed for internal on-board integration. It operates at a center frequency of 5.8855 GHz, supporting the 802.11p standard. The component features right-hand circular polarization (RHCP) and utilizes a pin termination type. Its physical dimensions are 13 mm in length, 13 mm in width, and 4 mm in height. The unit employs adhesive mounting for secure attachment to vehicle surfaces or embedded systems.

Feature Summary

Supports V2X and DSRC communication protocols
Right-hand circular polarization for reliable signal reception
Compact ceramic patch construction for internal installation

Applications

Vehicle Safety Applications
Automotive Connected Car Systems
Safety Driving Embedded Systems

Procurement Notes

Verify the specific datasheet version against the manufacturer's official documentation before procurement. Confirm that the pin termination and adhesive mounting method align with the target assembly process. Ensure the operating environment meets the thermal and mechanical requirements specified in the technical data sheet for automotive-grade reliability.

Selection Notes

Select this component when integrating V2X or DSRC capabilities into compact automotive platforms requiring RHCP performance. The 13x13x4mm form factor suits space-constrained designs. Consider the adhesive mounting requirement during mechanical design. Validate compatibility with the 5.8855 GHz band for regional regulatory compliance.

Part Context

This part belongs to the KYOCERA AVX family of ceramic patch antennas engineered for advanced electronic solutions. These components are designed to offer high performance for a wide range of applications, specifically targeting the automotive sector. The 9001118 model represents a specialized solution for vehicular communication technologies.
