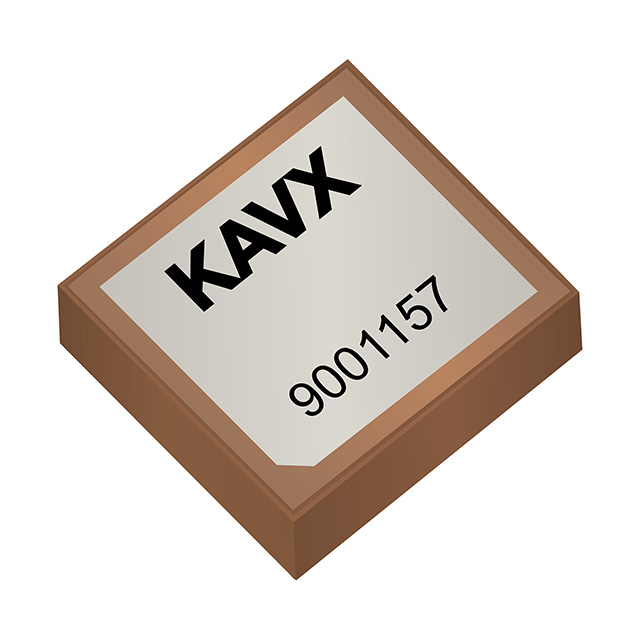

9001157

$4.38

Description：GPS 18X18X4 SMT CERAMIC PATCH AN
Series：-
Mfr：KYOCERA AVX
Package：Tray

SKU:133a36634818 Category: RF Antennas Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：GPS 18X18X4 SMT CERAMIC PATCH AN
Series：-
Mfr：KYOCERA AVX
Package：Tray
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.58GHz, 1.6GHz
Frequency Range：1.56GHz ~ 1.59GHz, 1.59GHz ~ 1.61GHz
Antenna Type：Ceramic Patch
Number of Bands：2
VSWR：3.2, 5.8
Return Loss：-
Gain：3.8dBi, 4.3dBi
Features：-
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.157" (4.00mm)
Applications：GLONASS, GPS
Power - Max：2 W

Download product information

9001157

Overview

The KYOCERA AVX 9001157 is a GPS and GLONASS surface-mount technology (SMT) ceramic patch antenna designed for automotive applications. It operates within the L1 band, covering frequencies from 1.56GHz to 1.61GHz. The component features a compact 18x18x4 mm footprint with a gain ranging from 3.8dBi to 4.3dBi. This configuration supports high-precision positioning and directional performance for embedded tracking systems.

Feature Summary

Supports dual-frequency GPS and GLONASS satellite navigation systems
Utilizes a compact ceramic patch design suitable for space-constrained SMT assembly
Optimized for high-precision positioning and directional signal reception

Applications

Automotive embedded tracking systems
High-precision vehicle positioning modules
Directional navigation receivers

Procurement Notes

Verify the specific datasheet version when sourcing this component to ensure compliance with current automotive standards. Confirm that the physical dimensions and mounting requirements align with your PCB layout constraints prior to integration.

Selection Notes

Select this model for applications requiring robust multi-constellation support in a low-profile form factor. Ensure the host circuitry accommodates the specified frequency range and impedance characteristics for optimal signal integrity.

Part Context

This part belongs to the KYOCERA AVX family of standard and custom antennas. It represents a specialized solution for embedded applications where size and performance are critical factors for reliable satellite communication.

Replacement Considerations

Consult official manufacturer documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without validating electrical parameters and mechanical footprints.
