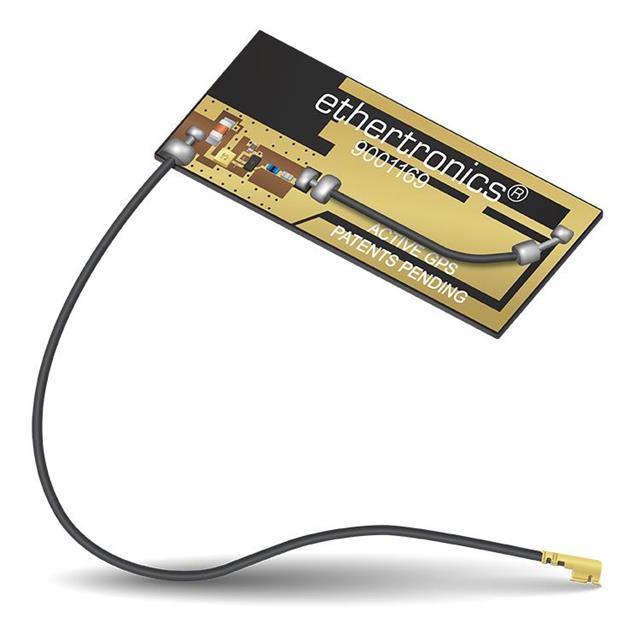

- Description：ANTENNA ASSY, GPS LNA
- Series：-
- Mfr：KYOCERA AVX
- Package：Box
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.575GHz
- Frequency Range：1.559GHz ~ 1.591GHz
- Antenna Type：PCB Trace
- Number of Bands：1
- VSWR：-
- Return Loss：9dB
- Gain：15.81dB, 15.72dB, 14.84dB
- Features：Cable - 100mm, LNA, Filter
- Termination：U.FL
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：-
- Applications：Galileo, GPS
- Power - Max：-
Download product information
Overview
The KYOCERA AVX 9001169F0-AA10L0100 is an active GPS antenna assembly designed for Machine-to-Machine (M2M) applications where standard patch approaches are insufficient. It integrates a Low Noise Amplifier (LNA) to enhance signal reception capabilities. The unit features a 100mm cable length and utilizes an MHF connector interface for system integration. Key performance metrics include gain values of 15.81dB, 15.72dB, and 14.84dB across operational bands.
Feature Summary
- Integrated Low Noise Amplifier (LNA) for improved RF performance
- Designed for M2M designs requiring high functionality
- Includes 100mm cable with MHF connector
Applications
- Machine-to-Machine (M2M) communications
- GPS navigation systems
- Galileo positioning applications
Procurement Notes
Verify the specific ordering suffix AA10L0100 to confirm the 100mm cable length and MHF connector configuration. Ensure compatibility with the target device's RF interface requirements before procurement. Cross-reference official datasheets to validate LNA specifications and gain parameters against system design constraints.
Selection Notes
Select this component when standard GPS patch antennas cannot meet spatial or performance requirements in M2M designs. The integrated LNA provides necessary signal amplification for reliable operation. Consider the 100mm cable length and MHF connector type during mechanical layout planning to ensure proper fit and electrical connectivity within the host enclosure.
Part Context
This part belongs to the KYOCERA AVX active GPS antenna series, which focuses on delivering high RF performance in compact form factors. The product line addresses scenarios where traditional passive solutions are inadequate. Similar models in the family may vary in cable length, connector type, or specific frequency band support while maintaining the active LNA architecture.
Replacement Considerations
Direct substitutes include variants such as 9001169F0-AA10L0050, which shares the same active antenna core but differs in cable length (50mm). Verify that any replacement maintains the required MHF connector interface and LNA performance characteristics to ensure seamless system integration without redesign.
