Product Detailed Parameters
- Description：5G/4G FPC ANTENNA, GROUND INDEPE
- Series：-
- Mfr：KYOCERA AVX
- Package：Bag
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：788.5MHz, 2.052GHz, 3.6GHz, 5.5GHz
- Frequency Range：617MHz ~ 960MHz, 1.415GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz
- Antenna Type：Flat Patch
- Number of Bands：4
- VSWR：2.2, 2.6, 3.8, 7.2
- Return Loss：-
- Gain：1.5dBi, 4.65dBi, 3.84dBi, 4.81dBi
- Features：Cable - 50mm
- Termination：U.FL
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.008" (0.20mm)
- Applications：5G, LoRa, LPWAN, LTE, LTE Cat M, M2M, NB-IoT, Sigfox
- Power - Max：2 W
Download product information
Overview

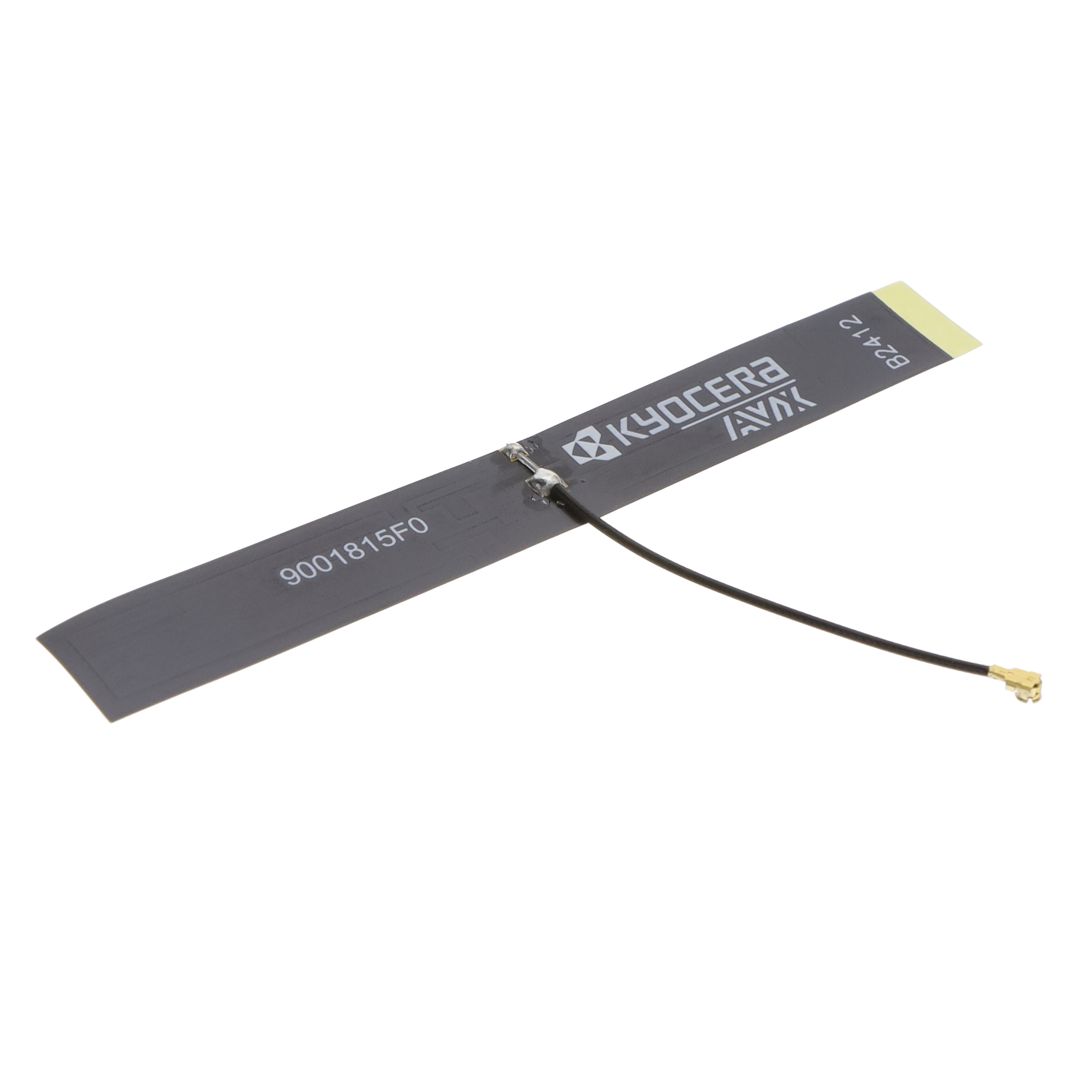

The KYOCERA AVX 9001815F0-AA10L0050 is a linear flexible printed circuit (FPC) antenna designed for 5G cellular, LTE, and NB-IoT applications. It operates at a center frequency of 5850MHz with a gain of 4.81dBi. The component features an adhesive mounting method and utilizes a U.FL connector interface. This embedded antenna supports connectivity standards including LoRa, LPWAN, LTE Cat M, M2M, and Sigfox, providing versatile off-board RF solutions.
Feature Summary
- Supports multiple wireless protocols including 5G, LTE, NB-IoT, LoRa, and Sigfox
- Utilizes a flexible PCB design optimized for embedded integration
- Features adhesive mounting for secure attachment to device surfaces
- Provides ground-independent radiation patterns for versatile placement
Applications
- 5G cellular modules and handsets
- LTE Cat M and NB-IoT devices
- LoRa and LPWAN IoT sensors
- M2M communication equipment
Procurement Notes
Verify the specific ordering suffix AA10L0050 against the official KYOCERA AVX datasheet to ensure correct cable length and connector configuration. Confirm that the adhesive backing meets the mechanical requirements of the target enclosure. Cross-reference the U.FL interface compatibility with the host board's RF connector before procurement.
Selection Notes
Select this model when multi-band support for 5G, LTE, and narrowband IoT is required in a single compact form factor. The 4.81dBi gain at 5850MHz suits applications needing reliable signal transmission in constrained spaces. Ensure the host device design accommodates the FPC flexibility and adhesive mounting constraints specified in the technical documentation.
Part Context
This part belongs to the KYOCERA AVX family of 5G and NB-IoT FPC embedded antennas. It is engineered for next-generation connectivity, supporting bands B1-B43. The series offers competitive advantages in throughput speed and spectral efficiency, addressing diverse user needs through standard and custom antenna configurations.
Replacement Considerations
Consult the official KYOCERA AVX replacement guide for direct substitutes. Verify that any alternative maintains identical U.FL interface, adhesive mounting type, and supported frequency bands to ensure functional equivalence in the final assembly.
