Product Detailed Parameters
- Description：5G & NB-IOT FPC EMBEDDED ANTENNA
- Series：-
- Mfr：KYOCERA AVX
- Package：Box
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：789MHz, 2.052GHz, 3.6GHz, 5.5GHz
- Frequency Range：617MHz ~ 960MHz, 1.415GHz ~ 2.69GHz, 3.4GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz
- Antenna Type：Flat Patch
- Number of Bands：4
- VSWR：2.2, 2.6, 3.8, 7.2
- Return Loss：-
- Gain：1.5dBi, 4.65dBi, 3.84dBi, 4.84dBi
- Features：Cable - 100mm
- Termination：U.FL
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：-
- Applications：LoRa, LTE, Sigfox
- Power - Max：2 W
Download product information
Overview

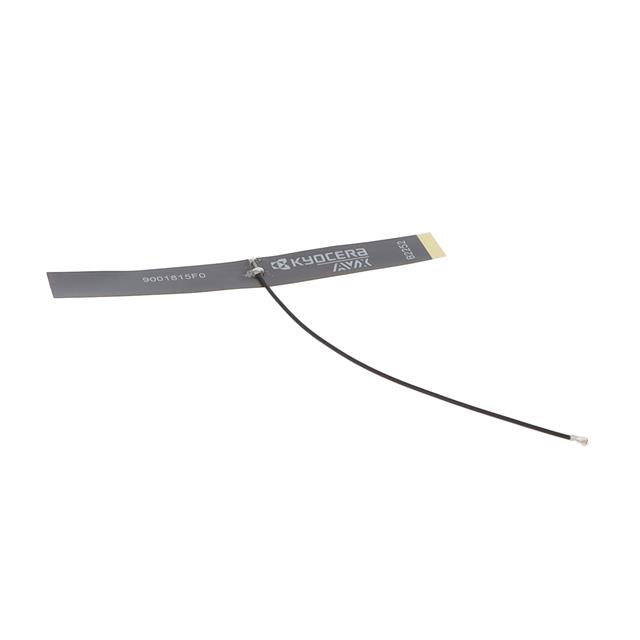

The KYOCERA AVX 9001815F0-AC10L0100 is an active FPC antenna assembly designed for wide-band cellular and LPWA applications. It supports frequencies from 5.15 to 5.85 GHz, including 6G, 5G, LTE CAT-M, NB-IoT, SigFox, LoRa, M2M, and IoT standards. The unit features a U.FL termination and includes a 100mm cable. It delivers a gain of 4.81 dBi and has a maximum power rating of 2 W.
Feature Summary
- Supports multiple cellular and low-power wide-area network protocols
- Integrated active design for enhanced RF performance
- Flexible printed circuit construction with adhesive mounting
Applications
- IoT device connectivity
- M2M communication modules
- LPWA network integration
Procurement Notes
Verify the specific frequency range and connector type against your system requirements before procurement. Confirm that the active component specifications align with your power budget. Ensure the 100mm cable length fits within your mechanical enclosure constraints. Check for any required impedance matching components for the U.FL interface.
Selection Notes
Select this model when broad protocol support across 5G, LTE, and LPWA bands is required in a single compact form factor. The active design suits applications needing higher gain than passive alternatives. Consider the U.FL connector compatibility with your host board layout. Evaluate the 100mm cable length for routing flexibility versus space limitations.
Part Context
This part belongs to KYOCERA AVX's FPC antenna series, which provides flexible solutions for embedded wireless systems. The product line targets diverse connectivity needs, ranging from standard cellular to specialized IoT protocols. This specific model emphasizes wide-band coverage and active amplification for reliable signal transmission in constrained spaces.
Replacement Considerations
No public confirmed substitute part numbers are available for this specific configuration. Verify if other models in the 9001815F0 series offer compatible electrical characteristics or different cable lengths.
