Product Detailed Parameters
- Description：ULTRA-SMALL GNSS L1/L2/L5/L6 OR
- Series：-
- Mfr：KYOCERA AVX
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：General ISM
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.18GHz, 1.23GHz, 1.28GHz, 1.58GHz, 1.59GHz
- Frequency Range：1.56GHz ~ 1.61GHz
- Antenna Type：Chip
- Number of Bands：5
- VSWR：1.5, 1.7, 1.8, 2
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：-
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.016" (0.40mm)
- Applications：M2M
- Power - Max：500 mW
Download product information
Overview

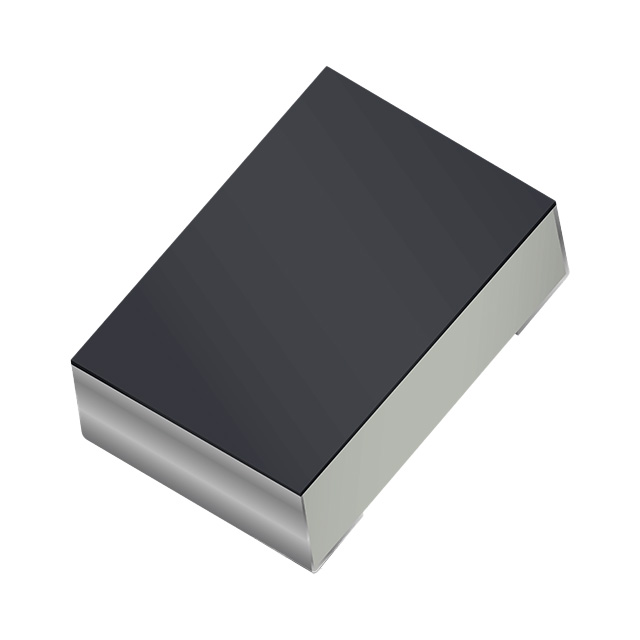

The KYOCERA AVX 9002137 is an ultra-small surface-mount GNSS chip antenna designed for L1, L2, L5, and L6 frequency bands. It supports GPS, GLONASS, Galileo, and BeiDou systems with linear polarization. The component features a compact footprint suitable for thin device designs. It operates within the 1.56 GHz to 1.61 GHz range for L1 band applications. The antenna utilizes SMT mounting technology for automated assembly integration.
Feature Summary
- Supports multi-constellation GNSS including GPS, GLONASS, Galileo, and BeiDou
- Ultra-small form factor optimized for thin and compact device designs
- Surface mount technology (SMT) implementation for reliable PCB integration
Applications
- Embedded design modules requiring compact GNSS solutions
- Point of Sale (POS) terminals needing location services
- Headsets with integrated tracking or communication capabilities
- Tablets and mobile devices prioritizing minimal profile construction
Procurement Notes
Verify the specific datasheet revision and mechanical dimensions against your PCB layout requirements before ordering. Confirm that the selected variant matches your target GNSS constellations and frequency bands. Ensure compatibility with your reflow soldering profile specifications. Check for any specific handling instructions regarding ESD sensitivity during storage and assembly processes.
Selection Notes
Choose this component when space constraints are critical in device architecture. It is suitable for applications requiring support for multiple global navigation satellite systems within a small physical envelope. Consider its performance characteristics relative to your specific antenna placement and ground plane requirements on the final product design.
Part Context
This part belongs to the KYOCERA AVX series of ultra-small chip antennas. These components address designer needs for higher functionality in smaller and thinner electronic designs. The series provides versatile options for integrating GNSS capabilities into modern portable and embedded electronics without compromising form factor.
Replacement Considerations
Consult official manufacturer documentation for direct substitute part numbers. Verify electrical and mechanical compatibility before replacing existing inventory. Ensure alternative components meet the same GNSS constellation support and size requirements.
