9002305L0-L01K

$3.21

Description：UWB LDS ANTENNA ("TULIP")
Series：-
Mfr：KYOCERA AVX
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:de454d474e16 Category: RF Antennas Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：UWB LDS ANTENNA ("TULIP")
Series：-
Mfr：KYOCERA AVX
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：-
Frequency Group：-
Frequency (Center/Band)：-
Frequency Range：-
Antenna Type：-
Number of Bands：-
VSWR：-
Return Loss：-
Gain：-
Features：-
Termination：-
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：-
Height (Max)：-
Applications：-
Power - Max：-

Download product information

9002305L0-L01K

Overview

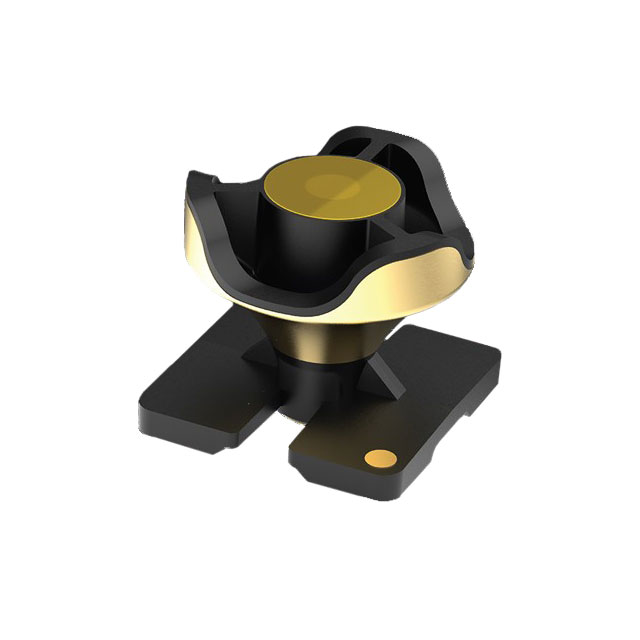

The KYOCERA AVX 9002305L0-L01K is a board-mounted Ultra-Wideband (UWB) antenna utilizing Laser Direct Structuring (LDS) technology. It operates within the 6 GHz to 8.5 GHz frequency range, providing a peak gain of 4.3 dBi and maintaining a standard 50 Ohm impedance. Designed for surface mount applications, this component supports linear polarization. The physical dimensions are 6.40 x 6.40 x 5.58 mm with a weight of 0.13 grams.

Feature Summary

Utilizes Laser Direct Structuring (LDS) technology for precise on-board integration
Optimized for Ultra-Wideband (UWB) communication applications
Features high gain performance within the specified frequency band

Applications

Ultra-Wideband wireless communication systems
Short-range high-speed data transfer devices
Precision location tracking hardware

Procurement Notes

Verify the specific ordering suffix against official KYOCERA AVX documentation to ensure correct packaging configuration. Confirm that the required quantity matches the manufacturer's standard reel specifications. Cross-reference the date code and lot information with current inventory records to guarantee component freshness and traceability prior to final procurement authorization.

Selection Notes

Select this component when designing circuits requiring integrated UWB capabilities in compact form factors. The LDS manufacturing process allows for flexible antenna geometry directly on the substrate. Ensure the host PCB material is compatible with LDS processing requirements. Verify that the 50 Ohm impedance matches the system's RF front-end specifications for optimal signal transmission efficiency.

Part Context

This model belongs to the Tulip series of UWB antennas developed by KYOCERA AVX. The series focuses on miniaturized solutions for modern wireless standards. The 9002305L0-L01K variant specifically addresses the need for high-performance antennas in space-constrained electronic devices requiring reliable wideband connectivity.
