Product Detailed Parameters
- Description：ISM 2.4GHZ 25X25X4MM CERAMIC PAT
- Series：-
- Mfr：KYOCERA AVX
- Package：Bag
- RF Family/Standard：Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.44GHz, 5.5GHz
- Frequency Range：2.4GHz ~ 2.48GHz
- Antenna Type：Ceramic Patch
- Number of Bands：1
- VSWR：-
- Return Loss：-7.8dB
- Gain：2.5dBi
- Features：Cable - 60mm
- Termination：MMCX Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.178" (4.52mm)
- Applications：Bluetooth, IoT, M2M, Wi-Fi, WLAN, ZigBee™
- Power - Max：-
Download product information
Overview

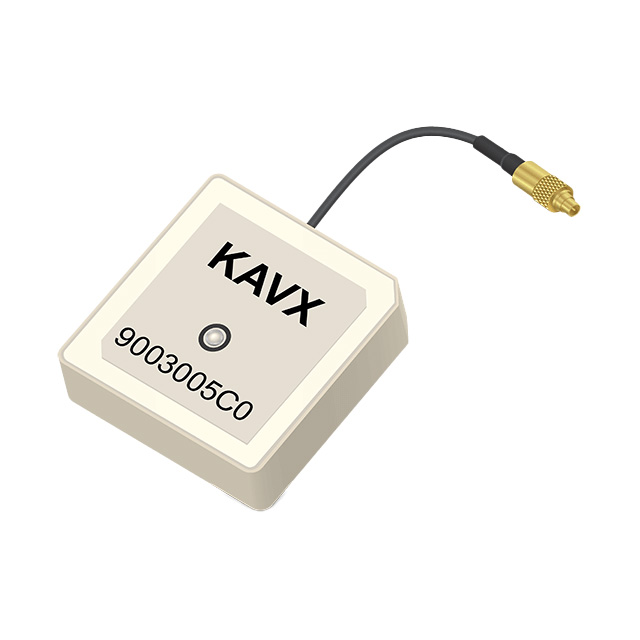

The KYOCERA AVX 9003005C0-AM20L0060 is a ceramic patch antenna designed for ISM band operations. It operates within the 2.4 GHz to 2.48 GHz frequency range, supporting applications such as Wi-Fi, WLAN, Bluetooth, and ZigBee. The component features a compact physical footprint of 25x25 mm with a height of 4 mm. This configuration allows for integration into space-constrained wireless devices requiring reliable RF performance in the 2.4 GHz spectrum.
Feature Summary
- Utilizes ceramic patch construction for structural stability
- Optimized for 2.4 GHz ISM band communication protocols
- Supports multiple wireless standards including Bluetooth and Wi-Fi
Applications
- Wireless LAN modules
- Bluetooth device integration
- ZigBee sensor networks
- IoT connectivity hardware
Procurement Notes
Verify the specific datasheet version against the manufacturer's official documentation to confirm current manufacturing status and environmental compliance details. Ensure that the ordering information matches the exact suffix requirements for the desired termination or packaging specifications. Cross-reference the part number with authorized distributors to validate authenticity and supply chain integrity before finalizing procurement orders.
Selection Notes
Select this component when a low-profile ceramic solution is required for 2.4 GHz wireless applications. Consider the 25x25 mm form factor for PCB layout constraints. Evaluate the antenna's radiation pattern and impedance matching characteristics against the specific host circuit design requirements to ensure optimal signal transmission efficiency.
Part Context
This antenna belongs to the KYOCERA AVX portfolio of radio frequency components. The brand specializes in advanced electronic solutions engineered for various industrial and consumer applications. This specific model represents a standard offering for short-range wireless communication needs within the broader category of passive RF components.
Replacement Considerations
Consult official KYOCERA AVX documentation for verified substitute part numbers. Do not assume functional equivalence with generic 2.4 GHz antennas without verifying electrical parameters and mechanical dimensions.
