9003034F0-AC10L0100

Overview

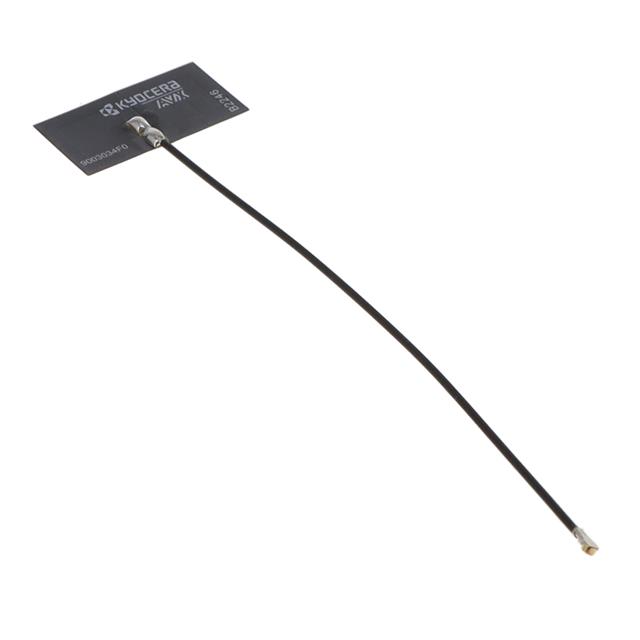

The KYOCERA AVX 9003034F0-AC10L0100 is an embedded RF antenna designed for 5G, 4G, LTE, MIMO, M2M, and IoT applications. It operates within a frequency range of 3.3 to 5 GHz, with specific center/band frequencies at 2.395 GHz and 4.15 GHz. The component provides a gain of 4.3 dBi and features a 50 ohm input impedance. Mounting options include adhesive attachment or an MHF4 connector interface.

Feature Summary

• Flexible substrate design optimized for high-band MIMO bands in 5G NR modules
• Supports flexible mounting on the underside of non-metallic housings
• Integrated adhesive or MHF4 connector interface for versatile installation

Applications

• 5G sub-6GHz cellular modules
• 4G/LTE MIMO systems
• IoT and M2M devices

Procurement Notes

Verify the exact part number suffix against official KYOCERA AVX documentation to ensure correct configuration. Confirm that the adhesive backing or MHF4 connector variant matches your assembly requirements. Cross-reference the datasheet for mechanical dimensions and environmental ratings prior to procurement.

Selection Notes

Select this antenna for applications requiring embedded solutions for 5G and LTE high-band operations. Ensure the host device utilizes a non-metallic housing for optimal performance. Verify compatibility with the required MIMO configuration and connector type before integration into the final product design.

Part Context

This component belongs to the KYOCERA AVX Embedded Cellular/5G Antennas series, which includes FR4, FPC, and external antennas suitable for 5G environments. The 9003034F0 series specifically addresses the need for flexible, low-profile antennas that can be integrated directly into device structures without compromising signal integrity.

Replacement Considerations

Consult official KYOCERA AVX substitution lists for verified alternatives. Generic replacements may not match the specific gain, impedance, or form factor requirements.
